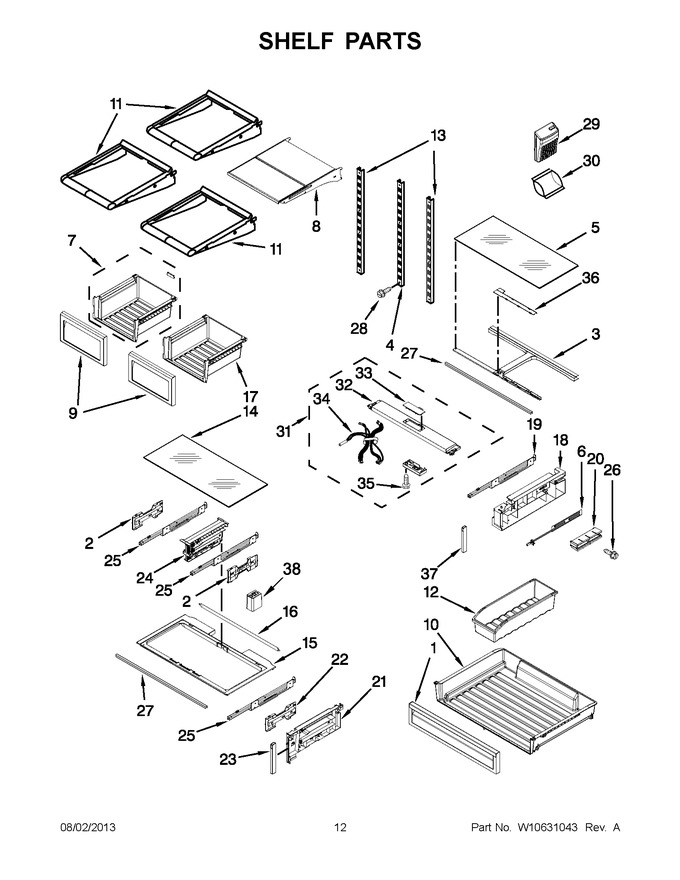

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11034025		Front, Pantry   (Replaces: W10510429)			Immediately	$ 282.60
2	W10530317		Plate, Slide Center				$ 14.55
3	WPW10489978		Support, Pantry   (Replaces: W10489978)				$ 53.56
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 34.18
5	WPW10248799		Glass, Pantry   (Replaces: W10248799)				$ 214.36
6	W10342618		Heater, Pantry				$ 83.87
7	W10919809		Pan, Crisper   (Replaces: W10397313)				$ 130.94
8	WPW10737427		Shelf, Tuck   (Replaces: W10487646)				$ 270.04
9	WPW10550026		Front, Crisper   (Replaces: W10550026)			Immediately	$ 113.46
10	WPW10654844		Pan, Pantry   (Replaces: W10498901)			Immediately	$ 130.40
11	W10467426		Shelf, Fixed		Appelez-nous	-
12	W10467369		Divider, Pantry				$ 24.81
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 48.21
14	WPW10248578		Glass, Crisper   (Replaces: W10248578)				$ 315.91
15	W10316419		Cover, Crisper				$ 197.25
16	WPW10248967		Support, Rear   (Replaces: W10248967)				$ 75.32
17	W10248524		Pan, Crisper				$ 60.21
18	WPW10498902		Plate, Side Pantry (right Hand)   (Replaces: W10498902)				$ 66.11
18	WPW10498906		Plate, Side Pantry (left Hand)   (Replaces: W10498906)				$ 125.75
19	W11759682		Slide, Pantry (right Hand)   (Replaces: W10499294)				$ 66.56
19	W10499289		Slide, Pantry (left Hand)				$ 337.85
20	W10432697		Insulation, Sideplate				$ 13.93
21	W11315181		Plate, Crisper (left Hand)   (Replaces: W10530318)				$ 76.31
21	W11315180		Plate, Crisper (right Hand)   (Replaces: W10530306)				$ 23.77
22	W10530316		Plate, Side				$ 26.12
23	W10467415		Plate, Crisper Front				$ 68.85
24	W10530307		Track, Center				$ 85.02
25	W11233912		Slide, Crisper   (Replaces: W10248819)				$ 270.89
26	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 7.95
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 127.67
28	W10423560		Screw		Appelez-nous	-
29	WPW10408747		Holder, Filter   (Replaces: W10408747)				$ 31.06
30	W10346771		Filter, Produce Preserver		Appelez-nous	-
31	WPW10732682		Cover, Front (includes Led Assembly)   (Replaces: W10584145)				$ 399.08
32	W10248837		Cover, Top		Appelez-nous	-
33	WPW10565995		User Interface Assembly   (Replaces: W10565995)			Immediately	$ 326.62
34	W10610324		Harness, Wire (includes Thermistor)   (Replaces: W10539187)				$ 123.77
35	W11311945		Screw   (Replaces: 12990204)				$ 14.02
36	W10490266		Support, Pantry Cover				$ 83.20
37	W10467416		Plate, Pantry Front				$ 36.44
38	W10530315		Support, Crisper				$ 16.19
