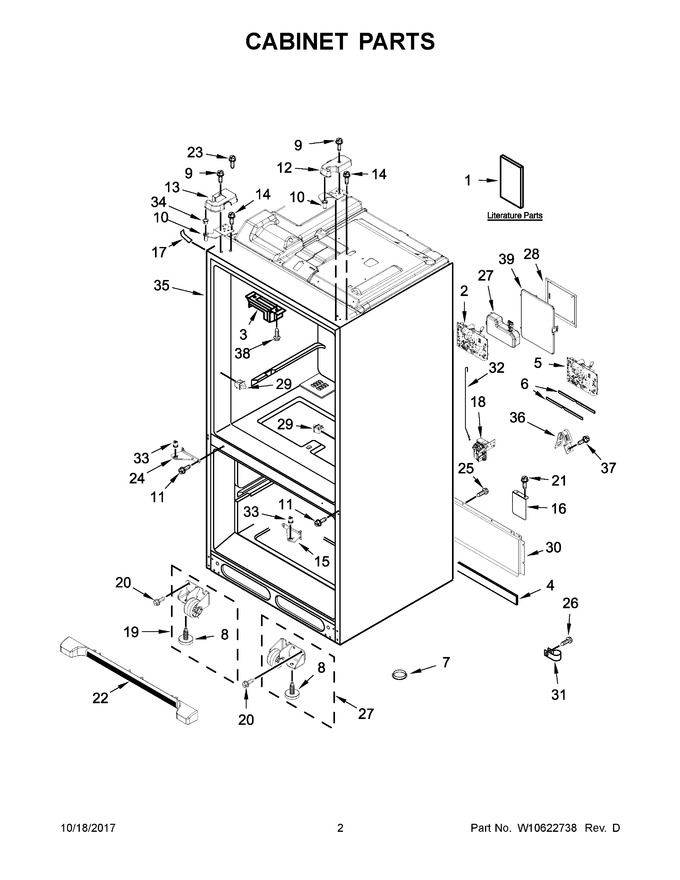

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Motor And Ice Container Parts


11 - Icemaker Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10503798		Tech Sheet		Appelez-nous	-
2	WPW10453401		Supply, Power   (Replaces: W10453401)			Immediately	$ 247.11
3	WPW10344432		Block, Pivot   (Replaces: W10344432)			Immediately	$ 19.16
4	W10505487		Gasket				$ 28.68
5	W10807590		Board, Control   (Replaces: W10774170)			Immediately	$ 491.09
6	W10415341		Gasket, Hv Box				$ 37.00
7	A3076901		Plug, Button				$ 5.70
8	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	W11592405		Hinge, Top (left Hand)   (Replaces: W10248410)				$ 32.31
11	W10673841		Screw (white)		Appelez-nous	-
12	W10248562		Cover, Right Hinge (white)		Appelez-nous	-
13	W10471615		Cover, Left Hinge (white)				$ 20.70
14	W11126052		Screw   (Replaces: W10731474)			Immediately	$ 14.73
15	W10248433		Hinge, Center (right) (white)				$ 85.33
16	W10336736		Cover, Roller		Appelez-nous	-
17	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 8.07
18	W10865826		Valve, Water   (Replaces: W10394076)			Immediately	$ 69.09
19	W11820444		Assembly, Roller (left Hand)   (Replaces: W10515763)			Immediately	$ 37.35
20	67006564		Screw   (Replaces: W10709365)			Immediately	$ 8.15
21	W11686675		Screw   (Replaces: 12990702)				$ 14.27
22	WPW10637668		Grille, Toe (white)   (Replaces: W10637668)				$ 138.98
23	W11214483		Screw   (Replaces: 12992601)			Immediately	$ 14.72
24	W10248434		Hinge, Center (left) (white)				$ 84.85
25	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
26	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
27	WPW10306786		Supply, Led Power   (Replaces: W10306786)			Immediately	$ 319.36
28	W10754591		Cover, Control Box				$ 111.45
29	W11396033		Switch, Light   (Replaces: 12466105)			Immediately	$ 37.30
30	W11482027		Cover, Unit   (Replaces: W10577369)			Immediately	$ 121.36
31	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
32	W11209890		Tube, Water   (Replaces: W10678711)				$ 119.27
33	WPW10505294		Coupler, Door   (Replaces: W10505294)				$ 11.90
34	W10212137		Retainer, Door				$ 13.69
35	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
36	549193		Clamp, Power Cord				$ 14.06
37	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
38	W10854958		Screw   (Replaces: 12990302)				$ 7.90
39	W10277839		Lid, Hv				$ 73.91
10A	W11592404		Hinge, Top (right Hand)   (Replaces: W10248409)				$ 25.90
11A	W10403211		Screw (black)				$ 78.33
11B	W11573362		Screw (grey)   (Replaces: W10403212)				$ 14.72
12A	W10407157		Cover, Right Hinge (black)				$ 23.06
12B	WPW10407158		Cover, Right Hinge (grey)   (Replaces: W10407158)				$ 22.98
13A	W10471617		Cover, Left Hinge (black)				$ 24.13
13B	WPW10471618		Cover, Left Hinge (grey)   (Replaces: W10471618)				$ 25.27
15A	W10407275		Hinge, Center (right) (black)   (Replaces: W10248702)				$ 79.94
15B	W11240748		Hinge, Center (right) (grey)   (Replaces: W10248703)				$ 78.71
19A	W11820445		Assembly, Roller (right Hand)   (Replaces: W10515762)			Immediately	$ 37.35
1A	W10859967		Use And Care Guide		Appelez-nous	-
1B	W10729266		Energy Guide		Appelez-nous	-
22A	WPW10637669		Grille, Toe (black)   (Replaces: W10637669)				$ 134.32
22B	WPW10637671		Grille, Toe (grey)   (Replaces: W10637671)			Immediately	$ 143.46
24A	W10407279		Hinge, Center (left) (black)   (Replaces: W10248705)				$ 82.59
24B	W10878115		Hinge, Center (left) (grey)   (Replaces: W10248706)			Immediately	$ 76.85
