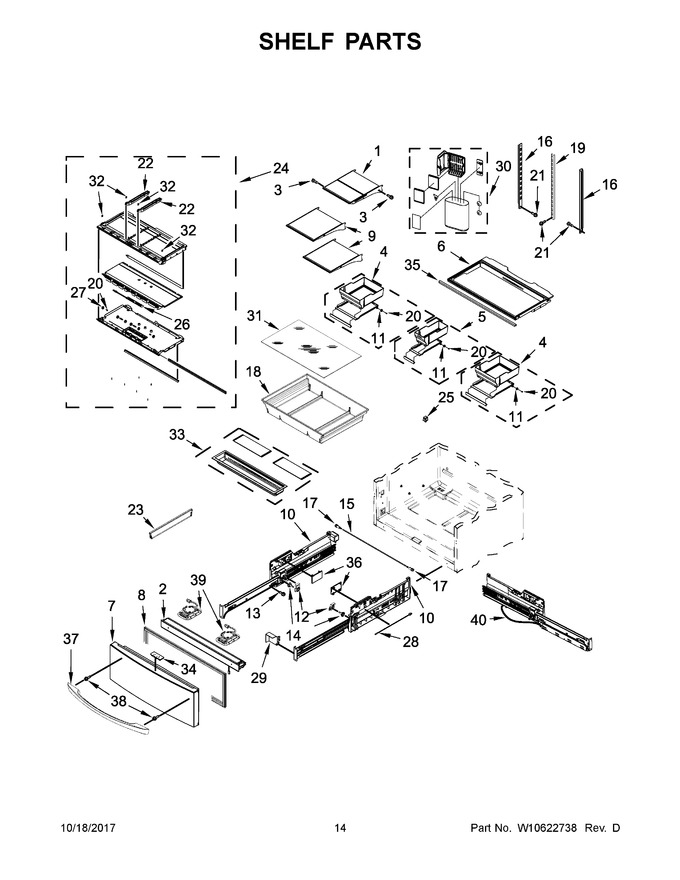

08 - Shelf Parts


09 - Dispenser Front Parts


10 - Motor And Ice Container Parts


11 - Icemaker Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10709175		Assembly, Tuck Shelf   (Replaces: W10709175)				$ 327.75
2	W10698206		Assembly, Secondary Mullion		Appelez-nous	-
3	W10421495		Screw				$ 19.09
4	W10839369		Crisper, Medium   (Replaces: W10509272)				$ 199.20
5	W10509275		Crisper, Small				$ 160.15
6	W11127833		Assembly, Crisper Cover   (Replaces: W11037029)				$ 231.46
7	W10546009		Door, Pantry (white)		Appelez-nous	-
8	W11627531		Gasket, Pantry (white)   (Replaces: W10587580)				$ 279.88
9	WPW10709163		Assembly, Shelf   (Replaces: W10709163)				$ 363.26
10	W11215629		Adapter, Pantry (left Hand)   (Replaces: W10667416)			Immediately	$ 193.62
11	W10788795		Roller   (Replaces: W10530295)				$ 20.60
12	W10284709		Cover, Gear (left Hand)				$ 73.89
13	12991702		Screw				$ 14.93
14	W10277360		Gear, Spur				$ 31.85
15	W10802341		Shaft, Rack		Appelez-nous	-
16	W11690684		Ladder, Side   (Replaces: W10372170)				$ 50.62
17	WPW10277361		Collar, Gear   (Replaces: W10277361)				$ 12.09
18	WPW10530656		Pan, Pantry   (Replaces: W10530656)				$ 240.88
19	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 35.89
20	67006692		Screw   (Replaces: 12991401)				$ 10.79
21	W10423560		Screw		Appelez-nous	-
22	W10530296		Guide, Crisper		Appelez-nous	-
23	W11763409		Divider, Large Pantry   (Replaces: W10772797)				$ 58.78
24	W10782690		Assembly, Floor (includes Heater)				$ 264.95
25	W11384469		Switch, Light   (Replaces: W10656773)			Immediately	$ 39.09
26	W10537691		Heater, Pantry				$ 91.16
27	W10788795		Roller   (Replaces: W10530295)				$ 20.60
28	W11168403		Thermistor   (Replaces: W10549991)				$ 86.14
29	W10518378		Cover, Connector		Appelez-nous	-
30	W11462816		Assembly, Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
31	W11038526		Glass, Crisper   (Replaces: W10893770)				$ 263.10
32	12702901		Pad, Glide		Appelez-nous	-
33	W10858273		Bin, Secondary Mullion   (Replaces: W10780178)				$ 253.20
34	WPW10503833		Assembly, User Interface (stainless)   (Replaces: W10503833)				$ 458.15
35	W10530297		Support, Crisper Front				$ 161.23
36	W10518036		Cover, Side Adapter				$ 22.75
37	W10830136		Handle, Door (white)   (Replaces: W10686459N)				$ 196.17
38	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
39	W11683241		Assembly, Led Light Module   (Replaces: W10637153)			Immediately	$ 271.97
40	W11170612		Harness, Side Adapter   (Replaces: W10512203)			Immediately	$ 82.35
10A	W11093718		Adapter, Pantry (right Hand)   (Replaces: W10750817)		Appelez-nous	-
12A	W10294414		Cover, Gear (right Hand)				$ 83.48
34A	WPW10599145		Assembly, User Interface (black)   (Replaces: W10599145)				$ 310.25
37A	W10719668		Handle, Door (black)				$ 202.48
37B	W11459378		Handle, Door (stainless)   (Replaces: W10686482N)			Immediately	$ 183.89
7A	LW10546008		Door, Pantry (black)   (Replaces: W10546008)		Appelez-nous	-
7B	LW10550670		Door, Pantry (stainless)   (Replaces: W10550670)				$ 1,337.09
8A	W10622446		Gasket, Pantry (grey)   (Replaces: W10518365)				$ 355.41
8B	W10622445		Gasket, Pantry (black)   (Replaces: W10545600)				$ 355.54
