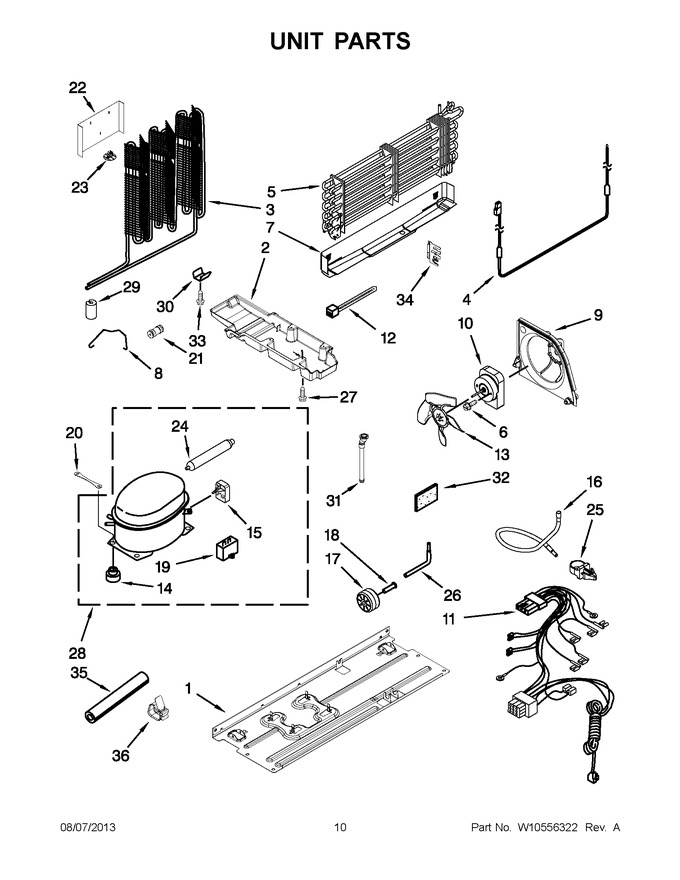

05 - Unit Parts


06 - Icemaker Parts


07 - Shelf Parts


08 - Dispenser Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11396825		Baseplate   (Replaces: W10300118)				$ 140.15
2	W10890667		Drain Tray   (Replaces: W10466213)				$ 151.95
3	WPW10342567		Condenser   (Replaces: W10342567)				$ 278.20
4	W10405108		Heater, Defrost		Appelez-nous	-
5	WPW10314205		Evaporator Assembly   (Replaces: W10314205)				$ 361.39
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	WPW10314195		Shield, Heat   (Replaces: W10314195)				$ 101.34
8	2302129		Bale Strap		Appelez-nous	-
9	WP2315541		Baffle, Air   (Replaces: 2315541)			Immediately	$ 87.99
10	WP2321271		Motor, Condenser   (Replaces: 2321271)				$ 325.47
11	W10402777		Wire Assy, Unit		Appelez-nous	-
12	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
13	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 99.82
14	WPW10169124		Grommet   (Replaces: 10835903)				$ 7.55
15	WP2312007		Start Device   (Replaces: 2312007)				$ 189.69
16	W10466682		Tube, Suction				$ 44.33
17	WPW10475495		Roller   (Replaces: W10475495)			Immediately	$ 32.06
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 19.12
19	2321245		Capacitor		Appelez-nous	-
20	W10236396		Strap, Compressor			Immediately	$ 20.81
21	WPW10271543		Connector, Water Tube   (Replaces: W10271543)			Immediately	$ 35.43
22	W10349515		Cover, Condenser Bottom		Appelez-nous	-
23	W10296661		Clip, Bottom Cover				$ 17.78
24	W10843121		Drier   (Replaces: W10190413)			Immediately	$ 57.13
25	2219077		Clip, Harness				$ 64.24
26	W11676464		Tube, Process   (Replaces: VS20001)				$ 108.61
27	WP489128		Screw   (Replaces: 488500)				$ 11.40
28	W10183407		Compressor   (Replaces: W10120455)				$ 435.61
29	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
30	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 19.38
31	W11190084		Drain Valve   (Replaces: W10519112)			Immediately	$ 65.56
32	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 14.77
33	W11544659		Screw   (Replaces: 8281232)				$ 14.35
34	W10314197		Bracket, Evaporator				$ 23.44
35	2264838		Sleeve				$ 92.28
36	W10812039		Clip, Wire   (Replaces: 2326941)				$ 11.12
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 137.25
NI	876764		Valve, Access			Immediately	$ 95.92
NI	N/P		Refrigerant Charge 3.75 Oz. (r-134)		Appelez-nous	-
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access			Immediately	$ 134.49
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
