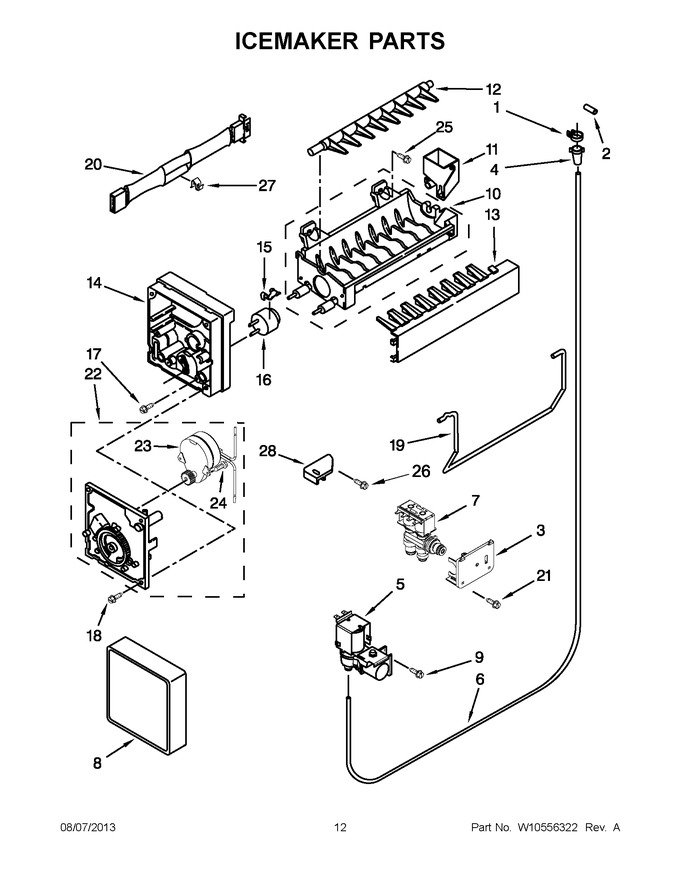

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10861184 | Clamp-tube (Replaces: W10329003) |
|
$ 59.31 | |||||
| 2 | 2003812 | Tube, Water Inlet |
|
- | |||||
| 3 | W10847867 | Bracket, Water Valve, Dual (Replaces: W10237915) |
|
$ 72.68 | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.41 | |||||
| 5 | WPW10258560 | Valve, Inlet (Replaces: W10258560) |
|
$ 166.69 | |||||
| 6 | W10823511 | Tube, Water (Replaces: 2181944) |
|
Immediately | $ 29.17 | ||||
| 7 | W10279867 | Valve Assembly, Dual Solenoid |
|
- | |||||
| 8 | W10289697 | Cover |
|
- | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 10 | W10122523 | Mold & Heater Assembly |
|
- | |||||
| 11 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 20.39 | |||||
| 12 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 13 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 89.48 | |||||
| 14 | WP2195914 | Support (Replaces: 2195914) |
|
$ 98.82 | |||||
| 15 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 16 | WP2321258 | Thermostat (also Order No.542369) (Replaces: 2321258) |
|
$ 93.54 | |||||
| 17 | W10001240 | Screw |
|
$ 8.30 | |||||
| 18 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 19 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 79.88 | |||||
| 20 | W10129833 | Harness, Wiring |
|
- | |||||
| 21 | WP489478 | Screw (Replaces: W10001260) |
|
$ 7.36 | |||||
| 22 | W10239565 | Module Assembly |
|
- | |||||
| 23 | W10122571 | Motor |
|
- | |||||
| 24 | W11096900 | Screw (Replaces: W10001220) |
|
- | |||||
| 25 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 26 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 27 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 28 | W11500948 | Bracket, Icemaker Mounting (Replaces: 628320) |
|
Immediately | $ 30.40 | ||||
| 100 | WPW10190943 | Complete Icemaker Assembly (Replaces: W10190958) |
|
$ 357.34 |
