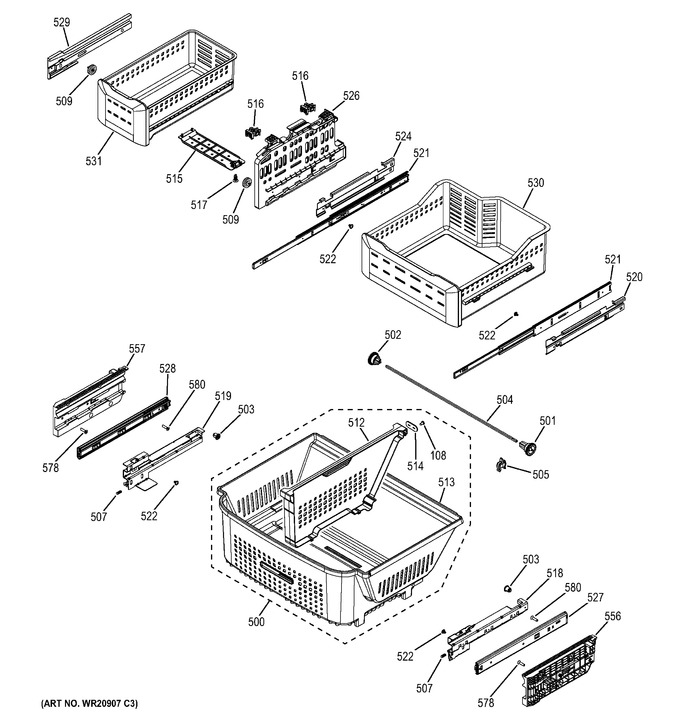

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
500	WR21X10254		Basket Bottom Asm		Appelez-nous	-
501	WG03L05151		Gear Lwr Drw Rh   (Replaces: WR02X13629)				$ 12.71
502	WG03L05152		Gear Lwr Drw Lh   (Replaces: WR02X13630)				$ 19.06
503	WG03F03819		Connnector Gear Pinion   (Replaces: WR02X13631)				$ 6.35
504	WR02X13765		Crossbar Pinion		Appelez-nous	-
505	WR01X11023		Pin Cross Bar		Appelez-nous	-
507	WR01X11036		Screw Set Door Fz		Appelez-nous	-
509	WR02X13686		Wheel Slide Asm		Appelez-nous	-
512	WR02X13764		Divider Basket Bottom		Appelez-nous	-
513	WR21X10255		Basket Bottom		Appelez-nous	-
514	WR02X13674		Support Slide Fz		Appelez-nous	-
515	WR17X13085		Support Btm Fz Divider		Appelez-nous	-
516	WR02X13667		Stopper Fz Divider		Appelez-nous	-
517	WR01X11050		Fastener Push		Appelez-nous	-
518	WR17X13194		Bracket Slide Fz Rh		Appelez-nous	-
519	WR17X13195		Bracket Slide Fz Lh		Appelez-nous	-
520	WR17X13189		Bracket Slide Rh		Appelez-nous	-
521	WR17X13078		Slide Basket Upper Lh		Appelez-nous	-
522	WR01X11022		Scr 8-18 B Rnt20 1/4 S		Appelez-nous	-
524	WR17X13190		Bracket Slide Lh		Appelez-nous	-
526	WR17X13191		Divider Fz		Appelez-nous	-
527	WR72X10459		Slide Lower Fz Rh		Appelez-nous	-
528	WR72X10460		Slide Lower Fz Lh		Appelez-nous	-
529	WR17X13192		Glide Lh Asm Fz Bucket		Appelez-nous	-
530	WR32X10914		Basket Upper Asm Rh		Appelez-nous	-
531	WR32X10879		Basket Upper Asm Lh		Appelez-nous	-
556	WR72X10457		Slide Holder Fz Rh		Appelez-nous	-
557	WR72X10458		Slide Holder Fz Lh		Appelez-nous	-
578	WR01X11012		Scr 8-18 Ab Hxw 9/16 S		Appelez-nous	-
580	WR01X11013		Scr 10-18 Flt20 3/4 S		Appelez-nous	-
