SELECT A DIAGRAM

1 - Dispenser Door


2 - Freezer Door


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts

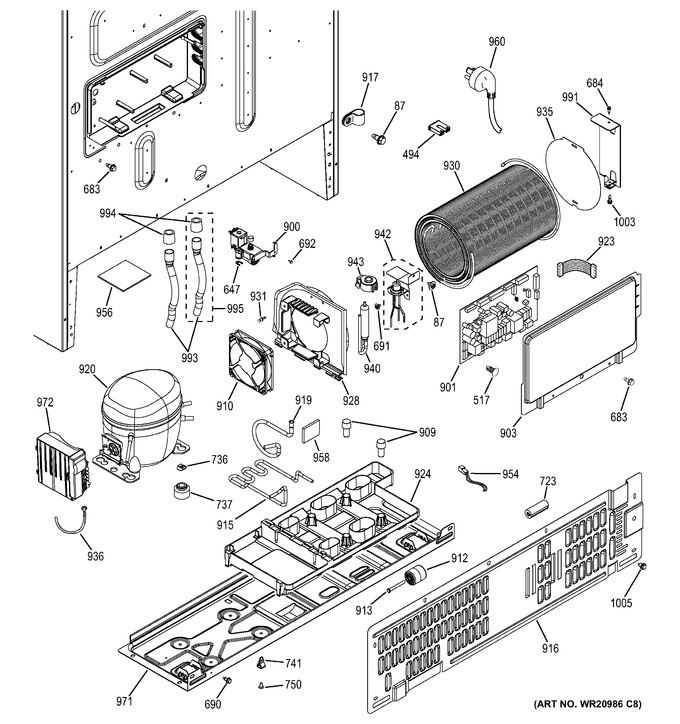

9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
494	WD1X1459		Insulator Hsng Term		Appelez-nous	-
517	WR01X11050		Fastener Push		Appelez-nous	-
647	WR01X11041		Quick Clip Connector 1/4		Appelez-nous	-
683	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
684	WR01X10635		Scr 8-32 Ca Ihxw .625 S		Appelez-nous	-
690	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
691	WR01X10897		Scr 12-24tt Bht20 .700 S		Appelez-nous	-
692	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
723	WR14X10055		Grommet Tubing Slit		Appelez-nous	-
736	WR2X8583		Clip Comp Mtng		Appelez-nous	-
737	WR02X13719		Grommet Compressor		Appelez-nous	-
741	WR1X1779		Stud Mtg Compr		Appelez-nous	-
750	WR1X1786		Scr 10-32 Tr 1/2		Appelez-nous	-
900	WG03F01801		Valve Water Iso Asm   (Replaces: WR55X11128)				$ 79.46
901	WR55X11176		Board Asm Main Control		Appelez-nous	-
903	WR02X13714		Cover Mainboard		Appelez-nous	-
909	WR02X13668		Support Condenser		Appelez-nous	-
910	WG03F04083		Fan Motor Condenser Dc   (Replaces: WR60X10339)			Immediately	$ 170.91
912	WR02X13685		Wheel		Appelez-nous	-
913	WR01X11008		Axle Wheel		Appelez-nous	-
915	WR84X10110		Jumper Comp Discharge		Appelez-nous	-
916	WR82X10127		Cover Access		Appelez-nous	-
917	WR01X11026		Clamp Tube		Appelez-nous	-
919	WR84X10111		Tube Suction Jumper		Appelez-nous	-
920	WR01F02896		Aasm Hi Side Wr87x10199   (Replaces: WR87X10199)				$ 1,113.83
923	WR23X10775		Harness Personality		Appelez-nous	-
924	WR32X10862		Pan Drain		Appelez-nous	-
928	WR17X13233		Plenum Condenser Fan Asm		Appelez-nous	-
930	WR84X10115		Condenser Asm Formed		Appelez-nous	-
931	WR01X11070		Plastic Rivet		Appelez-nous	-
935	WR17X13045		Baffle Cond Air		Appelez-nous	-
936	WR23X10748		Harness Ground		Appelez-nous	-
940	WR86X10089		Dryer Filter		Appelez-nous	-
942	WR86X10094		Valve Body Asm		Appelez-nous	-
943	WR86X10091		Coil 3 Way Valve		Appelez-nous	-
954	WR23X10768		Harness Doghouse		Appelez-nous	-
956	WR02X13713		Pad Mastic		Appelez-nous	-
958	WR02X13724		Mastic Sound Deadening		Appelez-nous	-
960	WR23X10769		Harness Power Cord		Appelez-nous	-
971	WR17X13128		Base Compressor		Appelez-nous	-
972	WR55X11138		Inverter Asm Comp Mount		Appelez-nous	-
991	WR02X13622		Bracket Condenser		Appelez-nous	-
993	WR02X13710		Tube Trap Drain		Appelez-nous	-
994	WR01X11006		Check Valve		Appelez-nous	-
995	WR02X13772		Trap And Valve Asm		Appelez-nous	-
1005	WR01X11072		Scr 1/4-20 Hxw 7/8 S		Appelez-nous	-
	WG03L05316		Charniere Goupille Sup. Asm. D.				$ 59.74
	WG03L05318		Charniere Centre Asm. D.				$ 68.02
	WG03L05598		Cadre Asm. Decoratif Bac A Legumes				$ 74.17
	WR01F01730		Sensor Temp Ff			Immediately	$ 16.29
	WG03F01791		Board Asm Main Control		Appelez-nous	-
	WG04A01013		Badge Ge Asm				$ 23.82
	WG03F04947		Refrigerator Water Filter Prm.   (Replaces: WG03F03765)			Immediately	$ 101.21
	WG03F05985		Tank Hot Water Asm   (Replaces: WG03F03920)			Immediately	$ 361.32
	WG03F04053		Board Asm Graphic Lcd				$ 531.92
	WG03F06676		Fan Motor Dc Ff Evap   (Replaces: WG03F04082)			Immediately	$ 127.15
	WG03F04887		Inverter   (Replaces: WG03F04840)			Immediately	$ 411.43
	WG03F04855		Duct Tower Asm Ff			Immediately	$ 245.74
	WG03F04856		Inverter Compressor			Immediately	$ 1,098.17
	WG03F06326		Bf Refer Sum Module Rev   (Replaces: WG03F04924)				$ 158.95
	WG03F05740		Kit ActualizaciÓn De Software + Vent.				$ 196.47
	WG03L00842		Fz Fan And Felt Asm			Immediately	$ 117.18
	WG03L09920		Door Foam Asm Ff Rh   (Replaces: WG03L01808)				$ 749.56
	WG03L02112		Cover Evap Ff Asm				$ 285.03
	WG03L05188		Filter Door Asm Dgy				$ 21.63
	WG03L05211		Latch Filter Door				$ 17.01

    View Diagram in Separate Window       Print Part List
