SELECT A DIAGRAM

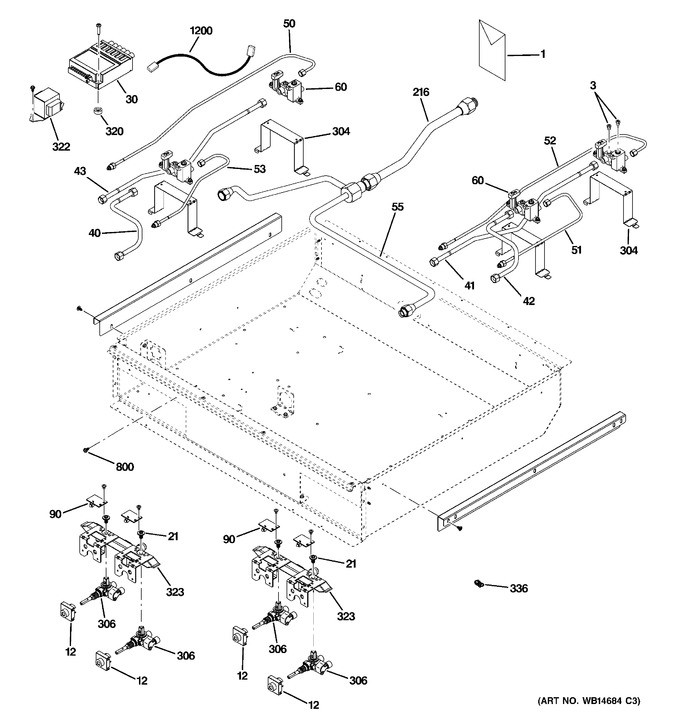

1 - Gas & Burner Parts


2 - Control Panel


3 - Cooktop


4 - Body Parts


5 - Oven Cavity Parts


6 - Door


7 - Door Lock


8 - Convection Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB28K10541		Carrier Orifice Asm		Appelez-nous	-
1	31-10693		Pm Conversion Steps		Appelez-nous	-
1	31-10694		Pm Install Anti-tip Brkt		Appelez-nous	-
1	31-10695		Pm Attention Installer		Appelez-nous	-
1	31-14935		Pm Mini Manual		Appelez-nous	-
1	WG02A00015		Cleaner-ss   (Replaces: WB02T10111)				$ 23.22
1	WG02A00297		Lubricant Cleaner   (Replaces: WB02T10303)				$ 77.35
3	WB28T10157		Orifice Ng Main/high Alt		Appelez-nous	-
3	WG02F01183		Orifice Spud (ng Simmer)   (Replaces: WB28T10159)			Immediately	$ 15.88
3	WS01F01437		Orifice Spud Lp Rf Main   (Replaces: WB28T10117)				$ 4.17
3	WS01F01438		Orifice Spud Lp Rf Simm   (Replaces: WB28T10118)			Immediately	$ 4.17
3	WG02F01190		Orifice Spud(ng Main)   (Replaces: WB28T10155)				$ 15.88
3	WG02F02247		Orifice Spud Lp Main   (Replaces: WB28T10158)				$ 6.35
12	WS01F09097		Harness Burner Box   (Replaces: WB24K10056)				$ 33.55
21	WB01K10067		Scr 8 Hd 1/4 - 20		Appelez-nous	-
30	WG02F01112		Module Spark   (Replaces: WB13T10078)				$ 220.61
40	WB28K10492		Tube And Nut Asm		Appelez-nous	-
41	WB28K10493		Tube And Nut Asm		Appelez-nous	-
42	WB28K10494		Tube And Nut Asm		Appelez-nous	-
43	WB28K10495		Tube And Nut Asm		Appelez-nous	-
50	WB28K10496		Tube And Nut Asm		Appelez-nous	-
51	WB28K10497		Tube And Nut Asm		Appelez-nous	-
52	WB28K10498		Tube And Nut Asm		Appelez-nous	-
53	WB28K10499		Tube And Nut Asm		Appelez-nous	-
55	WB28K10551		Tee Swaged Asm		Appelez-nous	-
60	WB28T10114		Injet Burner 18k		Appelez-nous	-
90	WS01F01723		Led Asm   (Replaces: WB25K10012)				$ 97.21
216	WB28K10537		Tube Regulator Asm		Appelez-nous	-
304	WB02K10192		Bracket Injet		Appelez-nous	-
306	WB21K10162		Valve Dual		Appelez-nous	-
320	WB1K10		Grommet Handle		Appelez-nous	-
322	WS01F02728		Transformer   (Replaces: WB27K10298)				$ 188.64
323	WB28K10536		Pipe Manifold Asm		Appelez-nous	-
336	WB2X7066		Clip Wire		Appelez-nous	-
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
1200	WB18K10052		Harness Hv		Appelez-nous	-
