SELECT A DIAGRAM

1 - Gas & Burner Parts


2 - Control Panel


3 - Cooktop


4 - Body Parts


5 - Oven Cavity Parts


6 - Door


7 - Door Lock

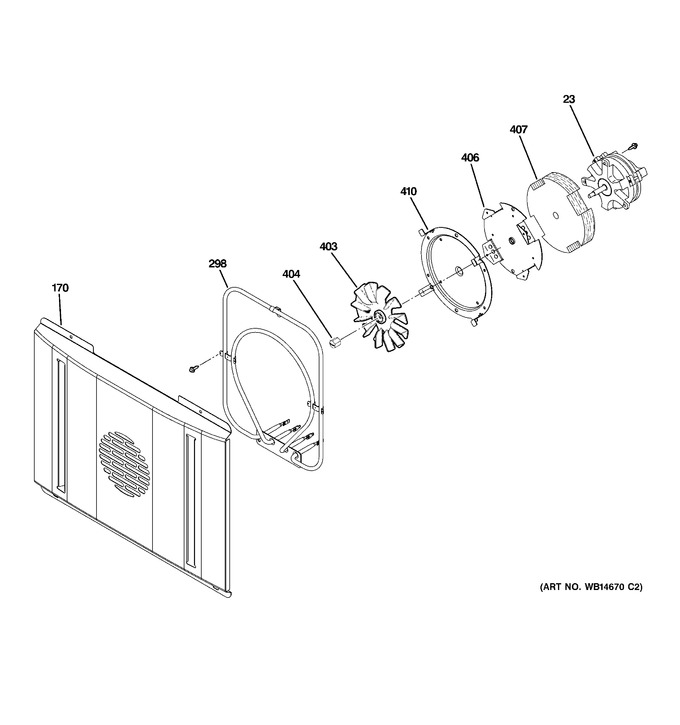

8 - Convection Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	WG02F02831		Motor Psc Conv   (Replaces: WB26T10037)				$ 169.32
170	WB02K10199		Cover Fan 27"		Appelez-nous	-
298	WB44T10058		Element Convection		Appelez-nous	-
403	WG02F00731		Hub Blade Asm   (Replaces: WB02T10289)			Immediately	$ 36.53
404	WS01A01105		Nut   (Replaces: WB02T10017)			Immediately	$ 9.50
406	WB02T10293		Bracket Convx Mtr Mtg		Appelez-nous	-
407	WB35K10128		Insulation		Appelez-nous	-
410	WB02T10310		Plate Convection		Appelez-nous	-
	WS01L00027		Bezel Oven Asm, Monogram				$ 107.90
	WS01F02318		Regulator, Monogram			Immediately	$ 141.48
	WS01F02021		Control Display Module				$ 170.68
	WS01F01582		Switch Sail Asm, Monogram				$ 148.63
	WS01F01298		Encoder Asm, Monogram			Immediately	$ 576.69
	WS01L05064		Panel Oven Door				$ 421.91
	WS01A00367		Monogram Badge				$ 12.40
	WS01F02431		Oven Sensor   (Replaces: WG02F04474)			Immediately	$ 30.20
	WG02F02820		Switch High Limit				$ 66.87
	WG02F01112		Module Allﾃ#me-gaz, Monogram				$ 220.61
	WG02F00677		Head Burner Asm 12k, Monogram				$ 168.52
	WS01F00474		Faisceau De Conducteurs				$ 62.33
	WS01L02134		Toe Kick Top				$ 62.07
	WS01L02117		Toe Kick Bottom				$ 171.42
	WS01L02092		Access Panel				$ 81.30
	WS01L01956		Relay Board Asm Rt			Immediately	$ 610.79
	WS01L00352		Latch Ovn, Monogram			Immediately	$ 169.56
	WS01L00233		Hinge Door Lt (30), Monogram				$ 158.95
	WS01L00222		Hinge Door Rt (30), Monogram				$ 193.86
	WS01F03814		Blowertangential 45mm,monogram			Immediately	$ 326.55

    View Diagram in Separate Window       Print Part List
