SELECT A DIAGRAM

1 - Gas & Burner Parts

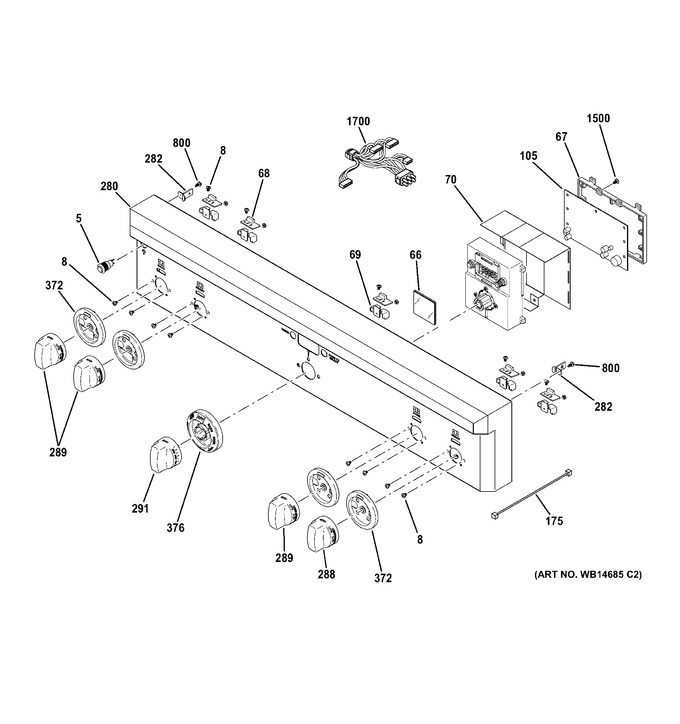

2 - Control Panel


3 - Cooktop


4 - Body Parts


5 - Oven Cavity Parts


6 - Door


7 - Door Lock


8 - Convection Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WS01F01623		Switch Led   (Replaces: WB21K10139)				$ 84.52
8	WS01A01212		Screw 8-32   (Replaces: WB01K10002)				$ 88.13
66	WB57K10134		Glass Display		Appelez-nous	-
67	WB02K10213		Bracket Control		Appelez-nous	-
68	WB25K10014		Led Board		Appelez-nous	-
69	WB02K10214		Bracket Led		Appelez-nous	-
70	WB24K10081		Encoder Asm		Appelez-nous	-
105	WB27K10365		Main Display Board		Appelez-nous	-
175	WB02T10300		Cover Base		Appelez-nous	-
280	WB36K10976		Control Panel & Rail Asm		Appelez-nous	-
282	WB02K10211		Bracket Control Panel		Appelez-nous	-
288	WB03K10359		Knob Asm Burner		Appelez-nous	-
291	WS01L06126		Knob Asm Oven Tmst   (Replaces: WB03K10259)				$ 87.93
372	WB07K10299		Bezel Knob		Appelez-nous	-
376	WB03K10307		Bezel Oven Asm		Appelez-nous	-
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
1500	WB01K10086		Scr 8-18 Ab Trp 3/8 Ss		Appelez-nous	-
1700	WB24K10063		Harness Serial Dual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
