View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Gas & Burner Parts
2 - Control Panel
3 - Cooktop
4 - Body Parts

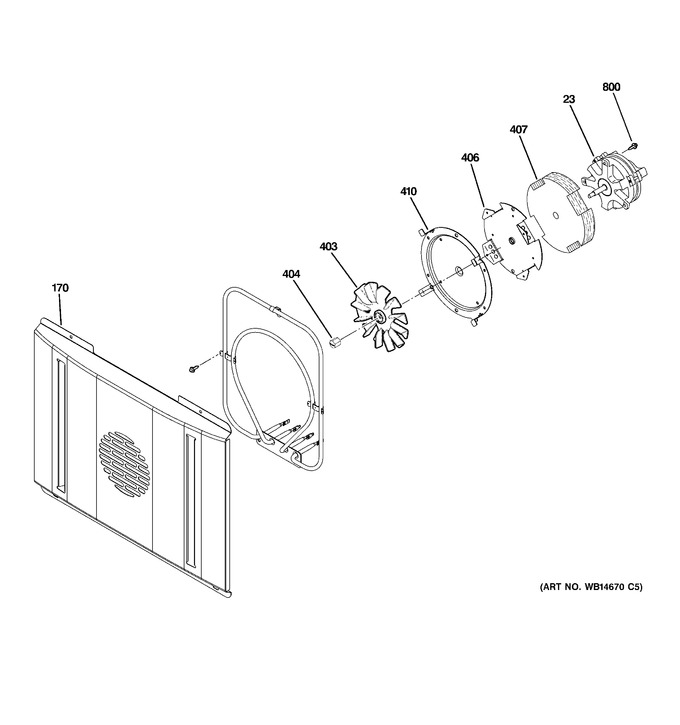

5 - Oven Cavity Parts
6 - Door
7 - Door Lock
8 - Convection Fan
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 23 | WG02F02831 | Motor Psc Conv (Replaces: WB26T10037) |
|
$ 169.32 | |||||
| 170 | WB02K10199 | Cover Fan 27" |
|
- | |||||
| 403 | WG02F00731 | Hub Blade Asm (Replaces: WB02T10289) |
|
Immediately | $ 36.53 | ||||
| 404 | WS01A01105 | Nut (Replaces: WB02T10017) |
|
Immediately | $ 9.50 | ||||
| 406 | WB02T10293 | Bracket Convx Mtr Mtg |
|
- | |||||
| 407 | WB35K10128 | Insulation |
|
- | |||||
| 410 | WB02T10310 | Plate Convection |
|
- | |||||
| 800 | WB01K10042 | Scr 8-18 Ab Ihw 3/8 Sn |
|
- | |||||
| WS01L00233 | Hinge Door Lt (30), Monogram |
|
$ 158.95 | ||||||
| WS01L00027 | Bezel Oven Asm, Monogram |
|
$ 107.90 | ||||||
| WS01F03890 | Valve Dual |
|
$ 90.99 | ||||||
| WS01F07600 | Blower Tangential 45mm (Replaces: WS01F03816) |
|
Immediately | $ 412.55 | |||||
| WS01F02728 | Transformer, Monogram |
|
$ 188.64 | ||||||
| WS01F02632 | Probe Thermistor, Monogram |
|
Immediately | $ 93.58 | |||||
| WS01F02623 | Control Display Module |
|
$ 157.16 | ||||||
| WS01F02430 | Sensor Asm |
|
$ 4.31 | ||||||
| WS01F09975 | Bruleur D''element De Gillage (Replaces: WS01F02189) |
|
$ 186.31 | ||||||
| WS01F02021 | Control Display Module |
|
$ 170.68 | ||||||
| WS01F01658 | Reed Switch Pcb |
|
$ 78.75 | ||||||
| WS01F01414 | Orifice Spud Broil |
|
$ 15.44 | ||||||
| WS01F01377 | Orifice Spud Broil |
|
$ 18.76 | ||||||
| WS01F01204 | Igniter Glowbar, Monogram |
|
Immediately | $ 132.75 | |||||
| WS01F07251 | Allume-gaz (Replaces: WS01F01193) |
|
Immediately | $ 222.39 | |||||
| WS01F00899 | Elbow Bake Orifice |
|
$ 38.22 | ||||||
| WS01F00871 | Encoder Asm |
|
$ 345.97 | ||||||
| WS01L07550 | Joint Du Porte |
|
$ 74.74 | ||||||
| WS01F02431 | Oven Sensor (Replaces: WG02F04474) |
|
Immediately | $ 30.20 | |||||
| WS01F01201 | Igniter (Replaces: WG02F03996) |
|
Immediately | $ 131.95 | |||||
| WG02F02247 | Orifice Spud Lp Main, Monogram |
|
$ 6.35 | ||||||
| WG02F00772 | Injet Burner 18k |
|
$ 57.91 | ||||||
| WS01F01438 | Orifice Spud Lp Main (Replaces: WG02F00464) |
|
Immediately | $ 4.17 | |||||
| WS01F01437 | Orifice Spud Lp Rf Main (Replaces: WG02F00463) |
|
$ 4.17 | ||||||
| WS01F02596 | Burner Cap (Replaces: WG02F00198) |
|
$ 50.42 | ||||||
| WG02F11443 | Burner Head Asm 18k, Monogram (Replaces: WG02F00134) |
|
Immediately | $ 185.68 | |||||
| WG02L03813 | Contre-porte Asm. |
|
$ 181.76 | ||||||
| WS01L06141 | Oven Bottom |
|
$ 87.41 | ||||||
| WS01L06126 | Knob Asm Grill,griddle,monogrm |
|
$ 87.93 | ||||||
| WS01L05018 | Control Panel & Rail Asm |
|
$ 126.02 | ||||||
| WS01L04706 | Trim Vent Asm |
|
$ 148.48 | ||||||
| WS01L01958 | Circuit Du Relais Asm. |
|
Immediately | $ 1,112.07 | |||||
| WS01L01956 | Relay Board Asm Rt |
|
Immediately | $ 610.79 | |||||
| WS01L00352 | Latch Ovn, Monogram |
|
Immediately | $ 169.56 | |||||
| WS01L00222 | Hinge Door Rt (30), Monogram |
|
$ 193.86 |
