SELECT A DIAGRAM

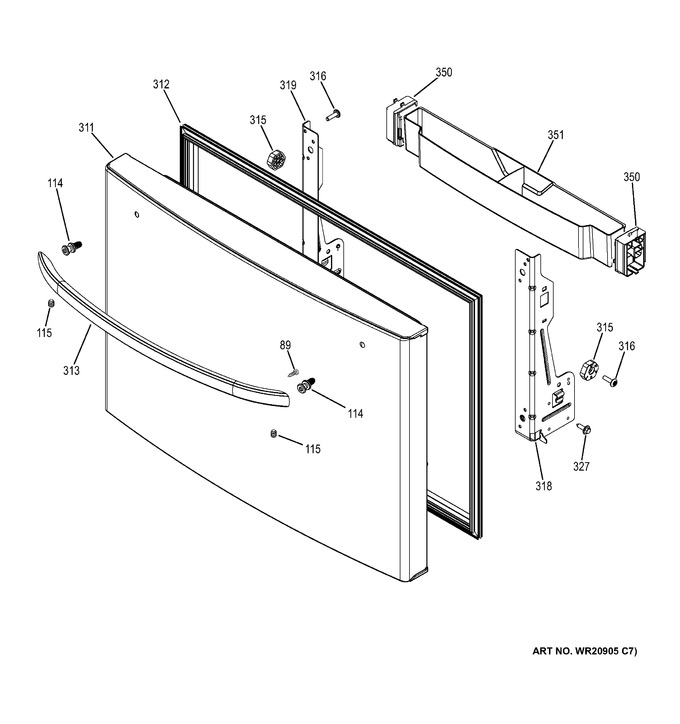

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
89	WR01X11044		Scr 10-32 B Rns .353 S		Appelez-nous	-
114	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
115	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35
311	WR78X12948		Door Foam Asm Fz Bowed		Appelez-nous	-
312	WR14X10376		Gasket Fz Dgy Es		Appelez-nous	-
313	WG03L06942		Handle Fz Asm   (Replaces: WR12X11015)				$ 173.80
315	WR02X13627		Cam Vert Adjustment		Appelez-nous	-
316	WR01X11010		Scr 1/4-20 Gx Trt 7/8 S		Appelez-nous	-
318	WR02X13625		Bracket Door Fz Rh		Appelez-nous	-
319	WR02X13626		Bracket Door Fz Lh		Appelez-nous	-
327	WR01X11011		Scr1/4-20 Hxw 3/4s		Appelez-nous	-
350	WR02X13704		Cap End Bin Fz		Appelez-nous	-
351	WG03A00267		Bin Freezer   (Replaces: WR71X11038)				$ 52.50

    View Diagram in Separate Window       Print Part List
