SELECT A DIAGRAM

Diagram for 1 - Freezer Door
1 - Freezer Door

Diagram for 2 - Fresh Food Door - Lh
2 - Fresh Food Door - Lh

Diagram for 3 - Fresh Food Door - Rh
3 - Fresh Food Door - Rh

Diagram for 4 - Freezer Section
4 - Freezer Section

Diagram for 5 - Freezer Shelves
5 - Freezer Shelves

Diagram for 6 - Fresh Food Section
6 - Fresh Food Section

Diagram for 7 - Fresh Food Shelves
7 - Fresh Food Shelves

Diagram for 8 - Case Parts
8 - Case Parts

Diagram for 9 - Machine Compartment
9 - Machine Compartment


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
65 WR02X13730 Cover Harness Appelez-nous -
78 WG03L05095 Spring Hinge Mullion   (Replaces: WR01X11052) In-Stock Immediately $ 10.86

79 WR01X11053 Sleeve Spring Mullion Appelez-nous -
80 WR02X13739 Hinge Cap Appelez-nous -
89 WR01X11044 Scr 10-32 B Rns .353 S Appelez-nous -
100 WR55X11155 Cover Led Fz Asm Appelez-nous -
106 WR01X11054 Scr 8-18 Flp 1/2 S Appelez-nous -
107 WR01X11029 Scr 8-18 Flp 1/2 S Appelez-nous -
114 WR01A01801 Fastener Door Handle   (Replaces: WR01X11007) In-Stock Immediately $ 12.71

115 WG03A01608 Set Screw   (Replaces: WR01X11014) In-Stock Immediately $ 6.35

133 WR78X12949 Door Foam Asm Ff Lh Nd Appelez-nous -
135 WG03L09792 Gasket Ff Dgy   (Replaces: WR14X10377) Special Order $ 145.45

136 WG03F05190 Arc Handle Asm Ff   (Replaces: WR12X11016) Special Order $ 181.23

139 WR11X10037 Closure Door Asm Lh Appelez-nous -
143 WR71X11055 Bin Gal Lh Ff Asm Appelez-nous -
147 WR71X11054 Bin Cond Lh Ff Asm Appelez-nous -
149 WG03A00428 Screw 8-18 Hi/lo 5/8   (Replaces: WR01X10196) Special Order $ 4.20

166 WR17X13240 Mullion Articulating Asm Appelez-nous -
167 WR13X10984 Hinge Center Mullion Appelez-nous -
168 WR13X10985 Hinge Mullion Appelez-nous -
173 WR02X13738 Coupler Straight 1/4 Appelez-nous -
173 WR02X13671 Coupler Straight 1/4 Appelez-nous -
195 WR55X11188 Ctrl Lh Door Side Asm Ss Appelez-nous -
237 WR01X11032 Scr 10-24 Ab Rnt 20 5/8 Appelez-nous -
238 WR02X13634 Stop Door Rh/lh Asm Appelez-nous -
999 49-60682 Pm Quick Use & Care Fr Appelez-nous -
999 31-45495 Pm Quick Install En Appelez-nous -
999 31-45496 Pm Quick Install Fr & Sp Appelez-nous -
999 31-51842 Pm Mini Wiring Manual Appelez-nous -
999 49-60681 Pm Quick Use & Care En Appelez-nous -
999 49-60683 Pm Guide Owners Web En Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

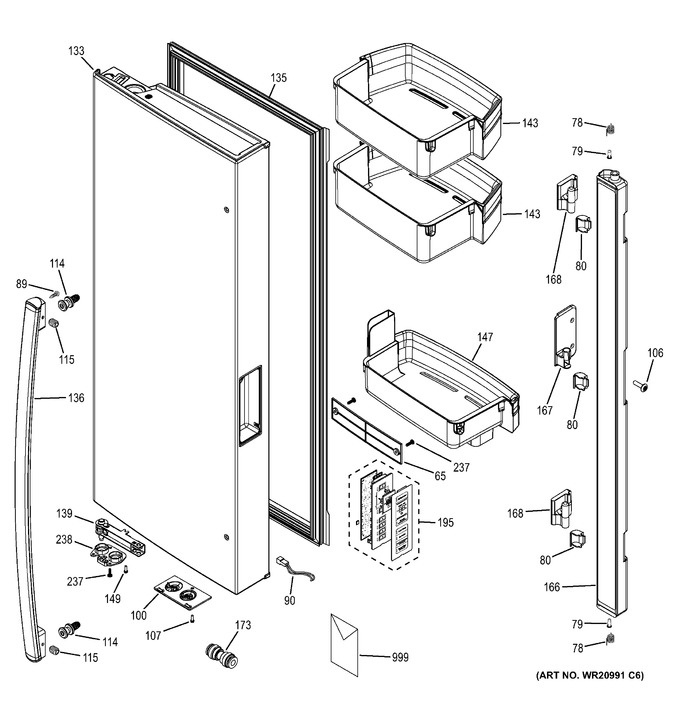

Diagram for GNE26GSDBSS
