SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment

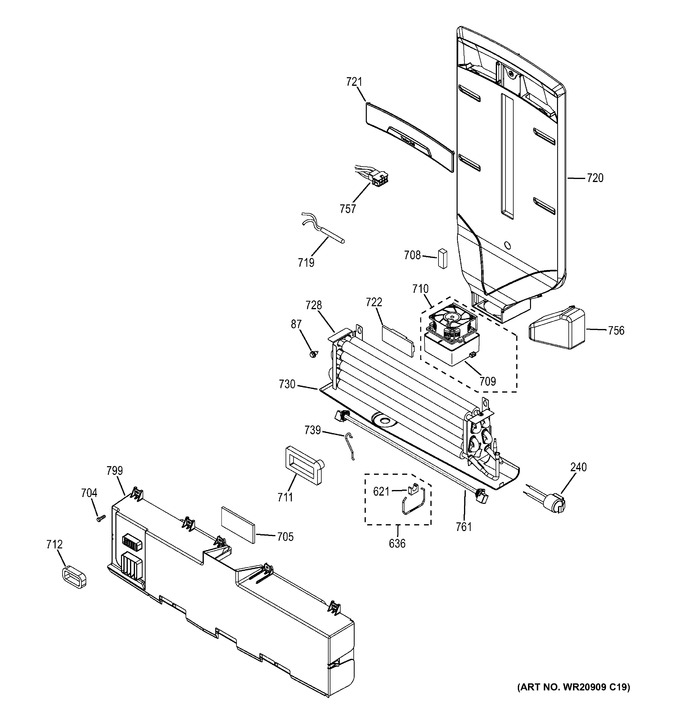

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
240	WR50X10109		Thermostat Defrost Ff		Appelez-nous	-
621	WR02X10518		Holder Element		Appelez-nous	-
636	WR02X13678		Holder Element Asm		Appelez-nous	-
704	WR01X11061		Scr 8-18 Hi/lo Hwx 3/4		Appelez-nous	-
705	WR02X13731		Gasket Ff Fan Front		Appelez-nous	-
709	WR24X10292		Boot Fan Ff Motor		Appelez-nous	-
710	WG03F06676		Fan Asm Ff   (Replaces: WR60X10357)			Immediately	$ 127.15
711	WR24X10289		Gasket Damper Mp		Appelez-nous	-
719	WR55X11152		Sensor Temperature		Appelez-nous	-
720	WR17X13234		Duct Tower Asm Ff		Appelez-nous	-
720	WR17X13081		Ff Air Duct Asm		Appelez-nous	-
721	WR17X13243		Diverter & Badge Asm		Appelez-nous	-
728	WR85X10154		Evap & Tube Asm Ff		Appelez-nous	-
730	WR17X13091		Trough Drain Ff		Appelez-nous	-
756	WR17X13048		Cover Connector Ff Fan		Appelez-nous	-
757	WR23X10753		Heater Harness Ff		Appelez-nous	-
761	WR51X10132		Heater Def Asm Ff		Appelez-nous	-
799	WR17X13142		Evap Cover Asm Ff		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
