SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment

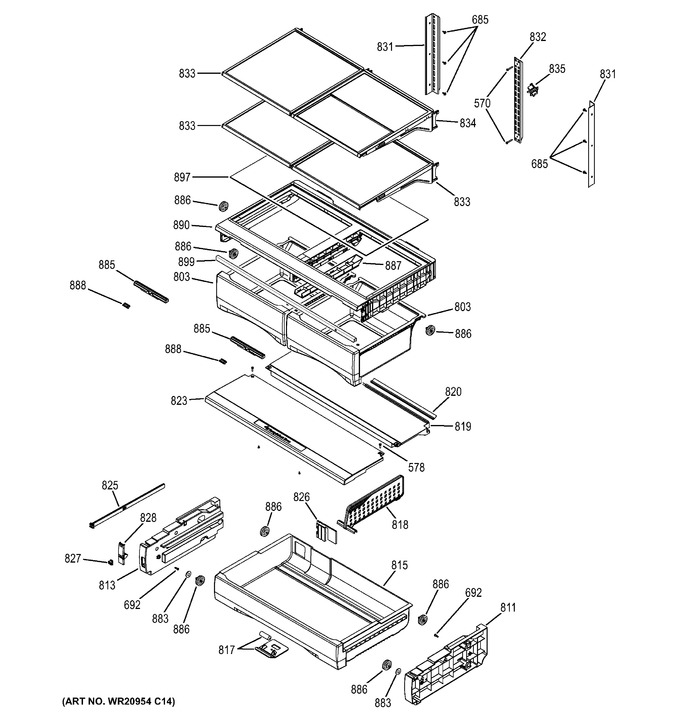

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
570	WR1X1757		Scr 8-18 Hxw 1 1/4s		Appelez-nous	-
578	WR01X11012		Scr 8-18 Ab Hxw 9/16 S		Appelez-nous	-
692	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
803	WR32X10897		Pan Veg Asm		Appelez-nous	-
811	WR72X10442		Support Mp Rh		Appelez-nous	-
813	WR72X10443		Art Support Side Lh Asm		Appelez-nous	-
815	WR32X10890		Pan Meat Asm		Appelez-nous	-
817	WR02X13680		Roller Sump Asm		Appelez-nous	-
818	WR17X13074		Divider Meat Pan		Appelez-nous	-
819	WR72X10438		Cover Mp Back Asm		Appelez-nous	-
820	WR14X10368		Gasket Meat Pan		Appelez-nous	-
823	WR32X10889		Cover Mp Front Asm		Appelez-nous	-
825	WR02X13707		Lever Manual Damper		Appelez-nous	-
826	WR02X13695		Damper Flap		Appelez-nous	-
827	WR02X13692		Switch Manual Damper Mp		Appelez-nous	-
828	WR02X13691		Knob		Appelez-nous	-
831	WR72X10430		Track Side Ff		Appelez-nous	-
832	WR72X10429		Track Center Ff		Appelez-nous	-
833	WR32X10887		Shelf Cantilever Asm		Appelez-nous	-
834	WR32X10886		Shelf Asm Tuckaway		Appelez-nous	-
835	WR02X13679		Spacer Track		Appelez-nous	-
883	WR01X11067		Washer		Appelez-nous	-
885	WR17X13073		Damper Slide Veg Pan		Appelez-nous	-
886	WR02X13658		Roller Asm		Appelez-nous	-
887	WR72X10444		Guide Roller Veg Pan		Appelez-nous	-
888	WR02X13677		Knob Veg Pan		Appelez-nous	-
890	WR32X10892		Art Frame Vp Asm		Appelez-nous	-
897	WR32X10893		Glass Veg Pan		Appelez-nous	-
899	WR02X21803		Bar Reinforcement		Appelez-nous	-
