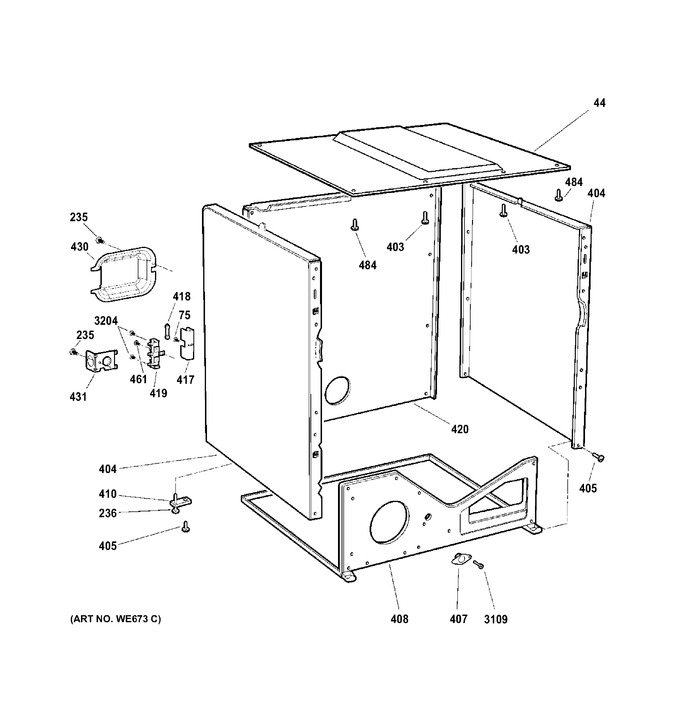

1 - Control Panel & Coin Box Assembly


2 - Timer Assembly


3 - Front Panel & Door


4 - Upper Cabinet


5 - Lower Cabinet


6 - Drum


7 - Blower & Drive Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
44	WE20M273		Cover Top		Appelez-nous	-
235	WE2M155		Screw		Appelez-nous	-
236	WE1M1101		Levelling Foot		Appelez-nous	-
403	WE2M160		Screw #8		Appelez-nous	-
404	WE20M490		Side Panel Wh		Appelez-nous	-
405	WE2M223		Screw		Appelez-nous	-
407	LS2-135		Thermostat Drum Out   (Replaces: WE4M127)			Immediately	$ 24.60
408	WE20M398		Cabinet Base		Appelez-nous	-
410	WE1M782		Level Leg & Bracket Frnt		Appelez-nous	-
410	WE1M772		Bracket Levelling Leg		Appelez-nous	-
410	WE1M773		Bracket & Level Leg Asm				$ 37.94
410	WE1M781		Front Bracket Level Leg		Appelez-nous	-
417	WW03F00107		Holder Fuse   (Replaces: WE1M1003)			Immediately	$ 125.11
417	WE1M413		Bracket Covr		Appelez-nous	-
418	WW03F00044		Fuse Ccmr 30 Amp 120v   (Replaces: WE1M1002)			Immediately	$ 34.48
419	WE4M525		Term Blk & Grnd Strap		Appelez-nous	-
420	WE20M536		Rear Panel		Appelez-nous	-
430	WE1M1102		Term. Block Cover		Appelez-nous	-
431	WE1M457		Strain Relief Bracket		Appelez-nous	-
484	WE2M172		Screw		Appelez-nous	-
3204	WH2M270		Scr		Appelez-nous	-
