1 - Control Panel & Coin Box Assembly


2 - Timer Assembly


3 - Front Panel & Door


4 - Upper Cabinet


5 - Lower Cabinet

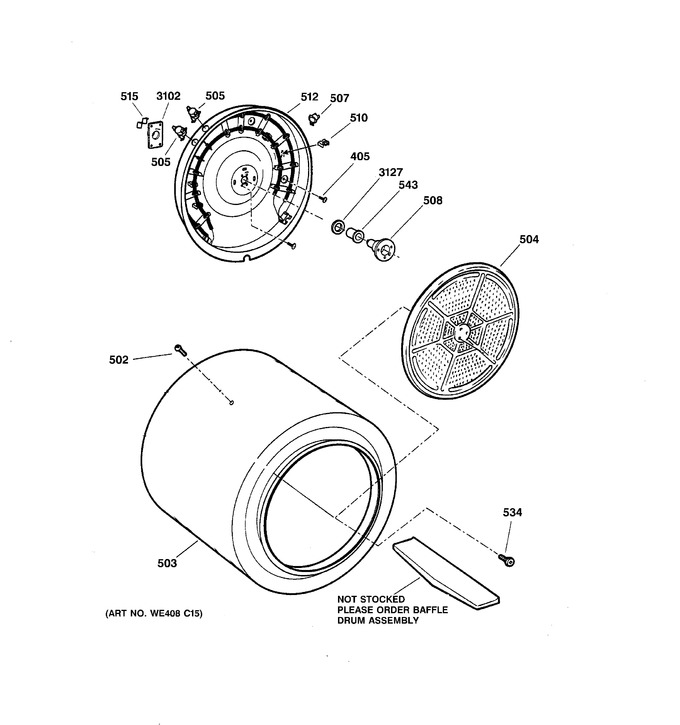

6 - Drum


7 - Blower & Drive Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
405	WE2M223		Screw		Appelez-nous	-
502	WW02A00031		Screw # 10   (Replaces: WE2M174)			Immediately	$ 3.57
503	WE21M62		Drum Asm. 5.4		Appelez-nous	-
504	WE14M57		Defl.heat		Appelez-nous	-
505	WE4M160		Thermostat Safety Left		Appelez-nous	-
507	WG04F02270		Thermostat Hi-limit   (Replaces: WE4M137)			Immediately	$ 17.14
508	WE25M40		We25m40   (Replaces: WE3X39)			Immediately	$ 157.05
508	WE1M420		Shim Drum Shaft		Appelez-nous	-
510	WG04F05016		Ceramic Insulator   (Replaces: WE1M452)				$ 3.64
512	WW02A00049		Housing Heater Assy   (Replaces: WE11M23)			Immediately	$ 163.04
515	WE1M1015		Ground Strap Asm		Appelez-nous	-
534	WW01A00456		Screw #10   (Replaces: WE2M163)			Immediately	$ 3.57
543	WE1M462		Sleeve Drum				$ 38.53
3102	WG04A00067		Bearing Retainer   (Replaces: WE1M300)				$ 7.33
3127	WG04F00001		O Ring   (Replaces: WE1M461)				$ 26.08
