SELECT A DIAGRAM

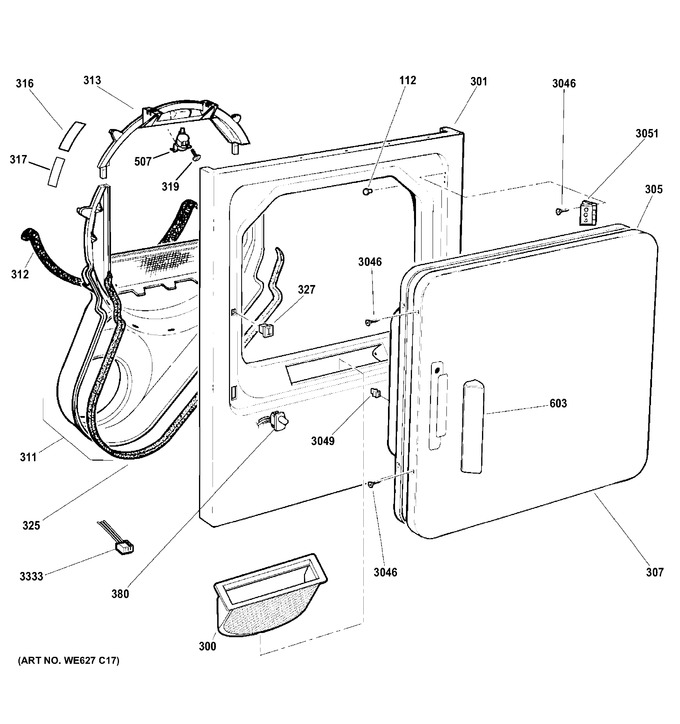

1 - Backsplash, Blower & Motor Assembly


2 - Front Panel & Door


3 - Cabinet


4 - Drum


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
112	WR01A00517		Beauty Button-wht   (Replaces: WR2X8693)				$ 4.37
300	WG04F00416		Lint Filter Metal Mesh   (Replaces: WE18M30)			Immediately	$ 45.26
301	WE20M528		Front Panel		Appelez-nous	-
305	WE10M171		Inner Door Asm. W		Appelez-nous	-
307	WW01L01133		Door Panel (white)   (Replaces: WE10M102)				$ 166.03
311	WW02F00592		Air Duct Assy   (Replaces: WE14M92)			Immediately	$ 194.92
312	WE9M30		Felt		Appelez-nous	-
313	WE3M56		Bearing Top		Appelez-nous	-
316	WG01F01524		Slide Green   (Replaces: WE1M1067)			Immediately	$ 38.00
317	WE1M504		Slide White			Immediately	$ 40.66
319	WD21M131		Screw Ground Front		Appelez-nous	-
325	WE1M376		Gasket				$ 26.89
325	WW02L00040		Gasket (seal)   (Replaces: WE00M169)			Immediately	$ 4.37
327	WE1M536		Latch		Appelez-nous	-
380	WE4M415		Door Switch		Appelez-nous	-
507	WG04F02270		Thermostat Hi-limit   (Replaces: WE4M137)			Immediately	$ 19.04
603	WE1M1026		Handle Door		Appelez-nous	-
3046	WW02A00097		Screw #8   (Replaces: WE2M196)				$ 3.97
3049	WW02A00004		Strike   (Replaces: WE1X1192)			Immediately	$ 3.97
3051	WW02L00028		Hinge   (Replaces: WE1M505)			Immediately	$ 9.92
3333	WE5M39		Harness Sensor		Appelez-nous	-
