SELECT A DIAGRAM

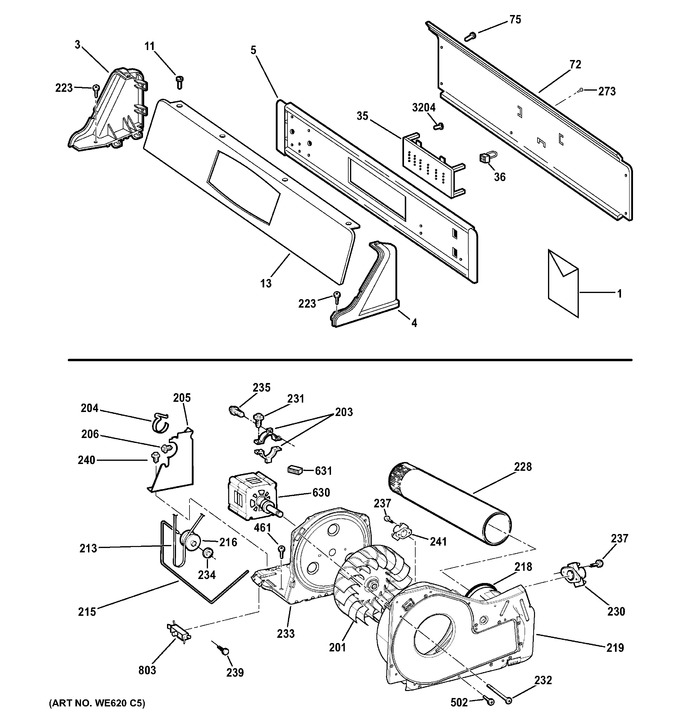

1 - Backsplash, Blower & Motor Assembly
2 - Front Panel & Door
3 - Cabinet
4 - Drum
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-16286 | Wiring Diagram (front Si |
|
- | |||||
| 1 | 49-90269 | Use & Care |
|
- | |||||
| 1 | 31-16308 | Pm Install Instructions |
|
- | |||||
| 3 | WE19M1451 | End Cap Lh Bk |
|
- | |||||
| 4 | WE19M1452 | End Cap Rh Bk |
|
- | |||||
| 5 | WH46X10055 | Support Switch |
|
- | |||||
| 11 | WH02X10089 | Screw 8-18 Ab Flt 9/16 S |
|
- | |||||
| 13 | WE19M1562 | Switch Trim Asm. Chr & B |
|
- | |||||
| 35 | WE4M278 | Electronic B |
|
- | |||||
| 36 | WD21X10070 | Harness |
|
- | |||||
| 72 | WE20M343 | Panel Back |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 201 | WE16M17 | Blower Wheel W/insert |
|
- | |||||
| 203 | WE13X200 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M39 | Motor Support |
|
- | |||||
| 206 | WE2M200 | Screw |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M33) |
|
Immediately | $ 29.38 | ||||
| 215 | WW02A00060 | Idler Arm Spring (Replaces: WE3M25) |
|
$ 12.60 | |||||
| 216 | WW02F00871 | Pulley Idler (Replaces: WE12M8) |
|
Immediately | $ 5.96 | ||||
| 218 | WE1M473 | Gasket Seal |
|
- | |||||
| 219 | WE14M235 | Blower Housing Asm |
|
- | |||||
| 223 | WE2M189 | Screws |
|
- | |||||
| 228 | WW02L00148 | Exaust Pipe (Replaces: WE14M90) |
|
$ 15.58 | |||||
| 230 | WG04F01127 | Thermostat Outlet (Replaces: WE4M216) |
|
Immediately | $ 16.58 | ||||
| 231 | WE2M187 | Screw |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M202) |
|
$ 3.97 | |||||
| 233 | WE13M65 | Plate Motor |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 10.12 | |||||
| 235 | WE2M307 | Scr 10-16 X 1/2 Ab |
|
- | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 239 | WE2M167 | Screws |
|
- | |||||
| 240 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.97 | |||||
| 241 | WE4M391 | Outlet Cntrl Thermistor |
|
- | |||||
| 273 | WE2M228 | Screw No.8 ( Ground ) |
|
- | |||||
| 461 | WZ5X158 | Screw Ground |
|
- | |||||
| 502 | WW02A00031 | Screw # 10 (Replaces: WE2M174) |
|
Immediately | $ 3.97 | ||||
| 630 | WE17M37 | Motor Thrd Shaft & Pully |
|
- | |||||
| 631 | WE1M650 | Connector Motor |
|
$ 13.19 | |||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 17.47 | ||||
| 3204 | WH2M270 | Scr |
|
- |
