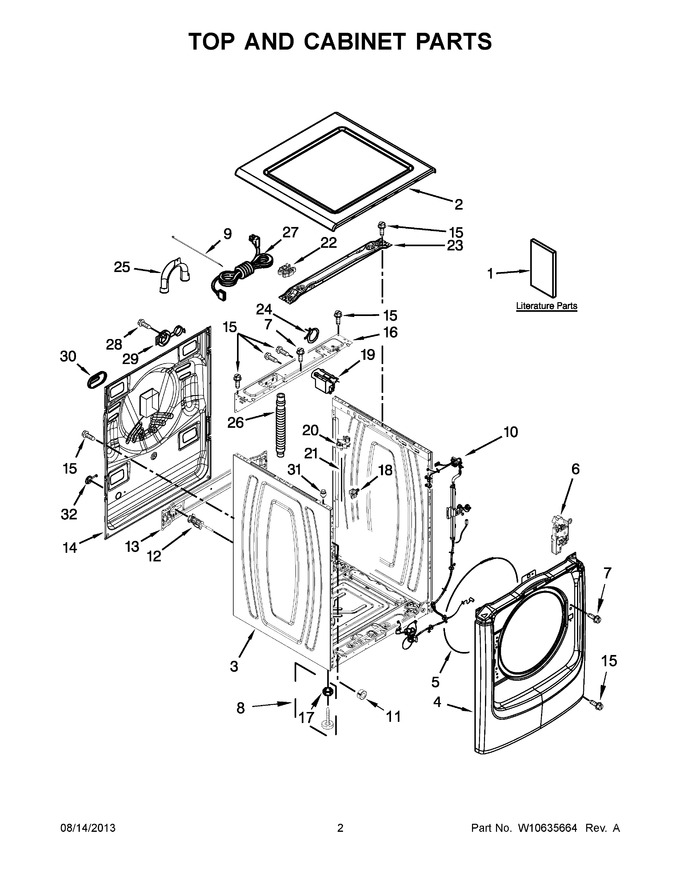

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10441077 | Owners Manual |
|
- | |||||
| 1 | W10441093 | Installation Instructions |
|
- | |||||
| 1 | W10441091 | Energy Guide |
|
- | |||||
| 1 | W10441082 | Tech Sheet |
|
- | |||||
| 2 | WPW10208373 | Top (white) (Replaces: W10208373) |
|
$ 336.48 | |||||
| 3 | W11166595 | Cabinet (white) (Replaces: W10441110) |
|
$ 482.52 | |||||
| 4 | W10441121 | Panel, Front (white) |
|
$ 161.15 | |||||
| 5 | W11266654 | Retainer, Bellow (to Front Panel) (Replaces: W10237503) |
|
Immediately | $ 26.94 | ||||
| 6 | WPW10443885 | Lock, Door (Replaces: W10443885) |
|
Immediately | $ 143.13 | ||||
| 7 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 8 | W10888529 | Leveling Leg Assembly (Replaces: W10073890) |
|
Immediately | $ 13.29 | ||||
| 9 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 10 | W10441667 | Harness, Wiring (lower Main) |
|
$ 275.23 | |||||
| 11 | W10323182 | Spacer, Front Panel (Replaces: W10615477) |
|
- | |||||
| 12 | W10763470 | Bolt, Shipping (lower) (Replaces: W10538711) |
|
$ 99.95 | |||||
| 12 | W10763470 | Bolt, Shipping (upper) (Replaces: W10538715) |
|
$ 99.95 | |||||
| 13 | W10237498 | Brace, Transport |
|
$ 76.49 | |||||
| 14 | W10568353 | Panel, Rear |
|
- | |||||
| 15 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 8.43 | ||||
| 16 | WPW10467483 | Brace, Rear (Replaces: W10467483) |
|
$ 39.67 | |||||
| 17 | WP3359452 | Nut, Hex (Replaces: 3359452) |
|
Immediately | $ 7.55 | ||||
| 18 | WPW10181028 | Clip, Pressure Switch Hose (Replaces: W10181028) |
|
$ 19.59 | |||||
| 19 | WPW10367632 | Filter, Interference (Replaces: W10367632) |
|
$ 128.33 | |||||
| 20 | WPW10448876 | Sensor, Pressure (Replaces: W10448876) |
|
Immediately | $ 66.79 | ||||
| 21 | W11044558 | Hose, Pressure Switch (Replaces: W10575922) |
|
Immediately | $ 34.36 | ||||
| 22 | W11846996 | Retainer, Spring (Replaces: W10245452) |
|
$ 10.07 | |||||
| 23 | W10467484 | Brace, Top |
|
$ 44.98 | |||||
| 24 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 25 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 26 | W11281268 | Hose, Drain (external) (Replaces: W10267638) |
|
Immediately | $ 18.26 | ||||
| 27 | W11035353 | Power Cord (Replaces: W10434975) |
|
Immediately | $ 131.05 | ||||
| 28 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 29 | W10854051 | Cover, Power Cord-transport (Replaces: W10275820) |
|
$ 22.50 | |||||
| 30 | WP8540268 | Cover, Transport (Replaces: 8182700) |
|
$ 7.30 | |||||
| 31 | W10208380 | Screw, Bush Assembly |
|
$ 72.48 | |||||
| 32 | W10304004 | Cover, Power Cord |
|
- |
