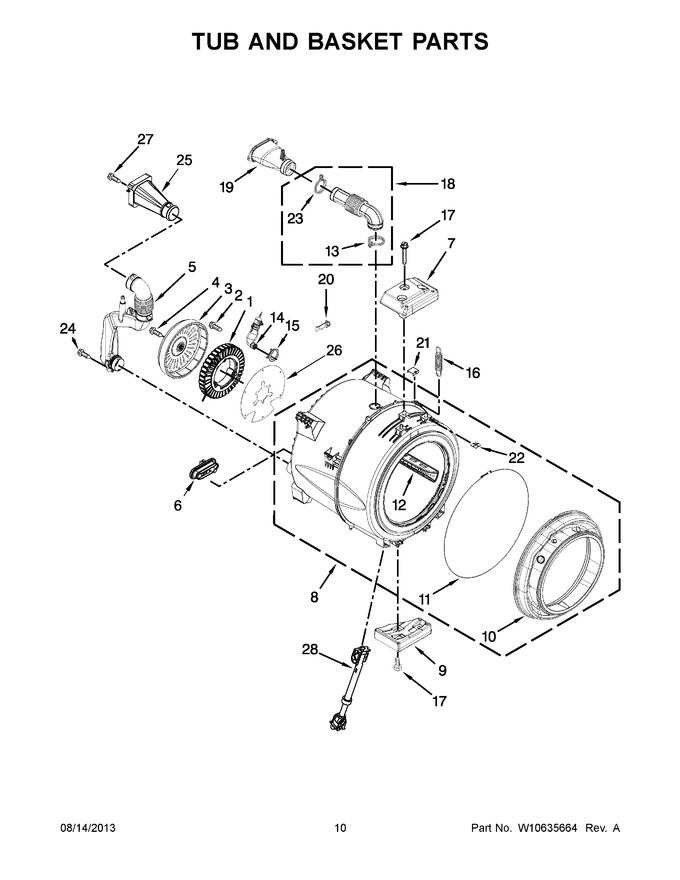

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10870752 | Stator, Motor (Replaces: W10453672) |
|
Immediately | $ 373.03 | ||||
| 2 | WPW10253476 | Screw, Stator Mounting (Replaces: W10253476) |
|
$ 8.78 | |||||
| 3 | WPW10453673 | Rotor, Motor (Replaces: W10453673) |
|
Immediately | $ 363.85 | ||||
| 4 | W11253212 | Screw, Rotor Mounting (Replaces: W10253477) |
|
Immediately | $ 14.81 | ||||
| 5 | W10261582 | Pipe, Ventilation Assembly |
|
$ 51.11 | |||||
| 6 | W11208385 | Sensor, Temp (Replaces: W10442461) |
|
$ 83.60 | |||||
| 7 | W10452854 | Counterweight, Top |
|
- | |||||
| 8 | WPW10737541 | Tub Assembly, Drum (Replaces: W10451926) |
|
$ 1,802.46 | |||||
| 9 | W10452855 | Counterweight, Bottom |
|
- | |||||
| 10 | W11106747 | Bellow (Replaces: W10340443) |
|
Immediately | $ 224.25 | ||||
| 11 | W11218344 | Retainer, Bellow To Tub (Replaces: W10237502) |
|
Immediately | $ 34.63 | ||||
| 12 | W10697830 | Baffle, Tub (Replaces: W10279544) |
|
$ 122.86 | |||||
| 13 | W10353599 | Clamp, Hose |
|
$ 28.65 | |||||
| 14 | WPW10260500 | Airtrap Assembly (Replaces: W10260500) |
|
$ 38.29 | |||||
| 15 | 371499 | Clamp, Hose |
|
$ 12.95 | |||||
| 16 | W11266649 | Spring, Suspension (set Of 2) (Replaces: W10312146) |
|
$ 18.30 | |||||
| 17 | W10261496 | Screw, Counterweight |
|
$ 13.23 | |||||
| 18 | WPW10568614 | Vent Hose Coupling Assembly (Replaces: W10568614) |
|
Immediately | $ 111.05 | ||||
| 19 | WPW10352818 | Vent Tube And Cover (Replaces: W10352818) |
|
$ 79.37 | |||||
| 20 | W10316388 | Clip, Harness Diverter |
|
$ 10.79 | |||||
| 21 | WP8540092 | Clamp, Tub (Replaces: 8540092) |
|
$ 7.59 | |||||
| 22 | WP8182512 | Nut, Push-in (Replaces: 8540072) |
|
Immediately | $ 6.95 | ||||
| 23 | W10273034 | Clamp, Vent Hose |
|
$ 10.69 | |||||
| 24 | W10306501 | Screw |
|
- | |||||
| 25 | W10460108 | Fan, Ventilation Assembly |
|
- | |||||
| 26 | W10870753 | Shield, Motor (Replaces: W10490826) |
|
$ 37.40 | |||||
| 27 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 11.56 | |||||
| 28 | W11415987 | Shock Absorber (Replaces: W10312625) |
|
Immediately | $ 150.98 |
