SELECT A DIAGRAM

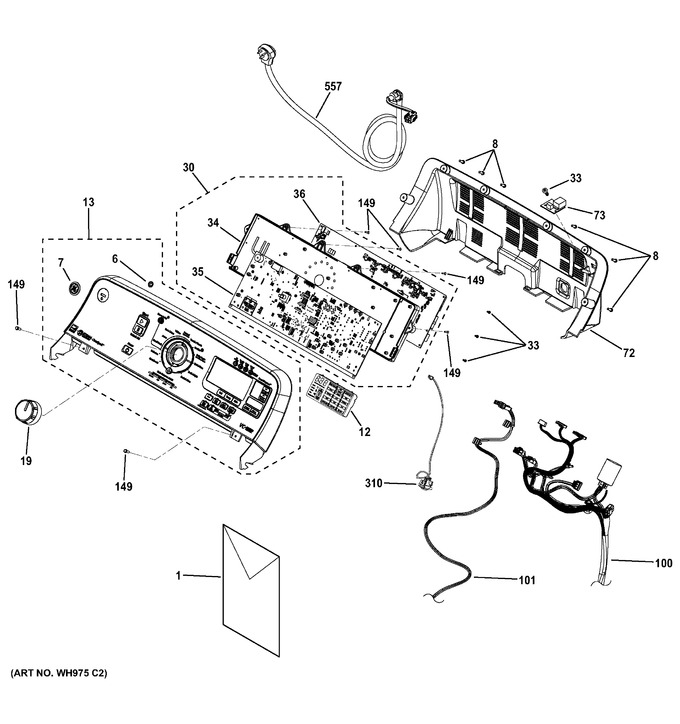

1 - Controls & Backsplash


2 - Top Panel & Lid


3 - Tub & Motor


4 - Cabinet & Bulk Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8911421P336		Housing Special		Appelez-nous	-
1	206C2084G044		Connector & Clip Asm		Appelez-nous	-
1	31-16696		Pm Installation Guide		Appelez-nous	-
1	49-90467		Pm Quick Ref Guide		Appelez-nous	-
1	WH46X10283		Rear Cover		Appelez-nous	-
1	31-16702		Pm Instruction Install		Appelez-nous	-
1	31-16852		Pm Sheet Manual		Appelez-nous	-
1	49-90458		Pm Manual U&c		Appelez-nous	-
6	8911403-DU		Terminal Straight		Appelez-nous	-
6	WH01X10711		Push Nut Fastener		Appelez-nous	-
8	WH02X10390		Scr 8-18x.520 Hwh Hi/lo		Appelez-nous	-
12	WH12X10610		Light Guide Asm		Appelez-nous	-
13	WH42X10969		Backsplash Bdy Asm		Appelez-nous	-
19	WH01X10679		Knob Asm		Appelez-nous	-
30	WG04F07728		Kit Svc Pcb Asm   (Replaces: WH12X10561)				$ 678.61
33	WH02X10381		Scr 4-16 H/l Pnt10 .315s		Appelez-nous	-
34	WH01X10664		Plastic Housing		Appelez-nous	-
35	WH12X10573		User Interface Pcb		Appelez-nous	-
36	WH12X10580		Inverter Machine Control		Appelez-nous	-
72	WH46X20253		Rear Cover Label Asm		Appelez-nous	-
73	WH12X10557		Dsm Module		Appelez-nous	-
100	WH19X10116		Harness Main Green		Appelez-nous	-
101	WH19X10118		Harness User Interface		Appelez-nous	-
557	WH19X20251		Cord Power Asm Flat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
