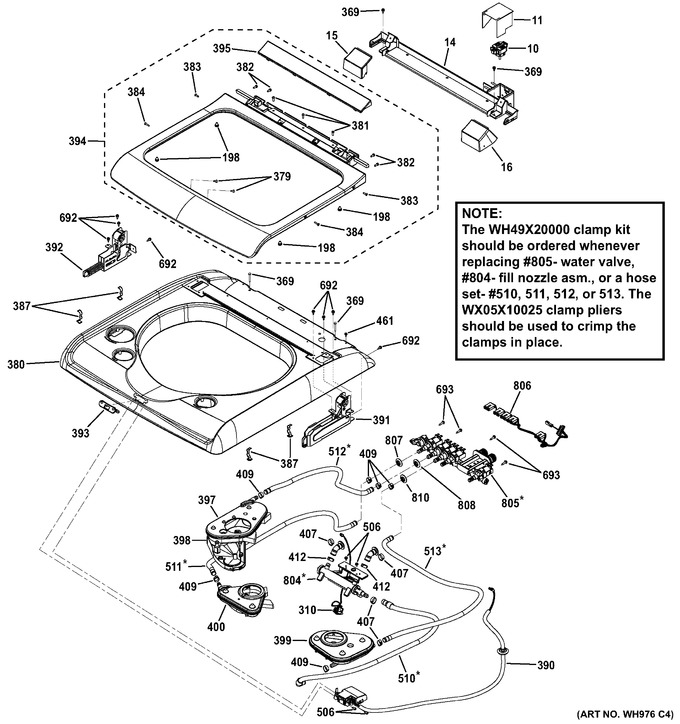

SELECT A DIAGRAM

1 - Controls & Backsplash


2 - Top Panel & Lid


3 - Tub & Motor


4 - Cabinet & Bulk Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WH12X10556		Sensor Pressure		Appelez-nous	-
11	WH01X10697		Shield Pressure Sensor		Appelez-nous	-
14	WH16X10179		Backsplash Bottom		Appelez-nous	-
15	WH42X11009		End Cap Lh		Appelez-nous	-
16	WH42X11010		End Cap Rh		Appelez-nous	-
198	WH01X10678		Bumper Lid		Appelez-nous	-
369	WW01A00097		Scr 8-18 Ab Ihw 7/16 Sn   (Replaces: WH2X1217)				$ 3.57
379	WH02X10377		Scr 8-16 Pl Flt15 .500 S		Appelez-nous	-
380	WH44X10306		Top Cover Finished		Appelez-nous	-
381	WH02X10372		Scr 8-16 Pl Pnt15 .500 S		Appelez-nous	-
382	WH02X10371		Scr 8-18 Pnt15 .375 S		Appelez-nous	-
384	WH02X10373		Scr 8-16 Pl Flt15 .665 S		Appelez-nous	-
387	WH02X10368		Clip		Appelez-nous	-
390	WH12X10552		Lid Lock		Appelez-nous	-
391	WH01X10683		Damper Asm - Glass		Appelez-nous	-
392	WH01X10665		Counter Balance - Glass		Appelez-nous	-
393	WH01X10680		Lid Lock Bezel		Appelez-nous	-
394	WH44X10312		Lid Asm		Appelez-nous	-
395	WH42X10958		Trim Top		Appelez-nous	-
397	WH47X10024		Siphon Bleach Large Asm		Appelez-nous	-
397	WH16X10190		Lid Bracket Asm		Appelez-nous	-
398	WH02X10410		Scr 8-32 Gx Hxw .625 S		Appelez-nous	-
398	WH47X10025		Overflow Collector		Appelez-nous	-
399	WH47X10023		Cup Hybrid Asm		Appelez-nous	-
400	WH47X10022		Drop In Detrgnt Disp Asm		Appelez-nous	-
407	WH01X10687		Hose Clamp		Appelez-nous	-
409	WH01X10688		Hose Clamp		Appelez-nous	-
412	WH01X10692		Hose Clamp		Appelez-nous	-
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
506	WG04A00176		Screw 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.57
510	WH41X10320		Hose Dispensing		Appelez-nous	-
511	WH41X10321		Hose Dispensing		Appelez-nous	-
512	WH41X10322		Hose Dispensing		Appelez-nous	-
513	WH41X10323		Hose Bulk		Appelez-nous	-
692	WR01X10593		Scr 8-18 Ab Ihxw 3/4 S		Appelez-nous	-
804	WH47X10030		Fill Nozzle Asm - 4.5		Appelez-nous	-
805	WH13X10058		Water Valve - 5 Solenoid		Appelez-nous	-
806	WH19X10112		Harness - Water Valve		Appelez-nous	-
807	WH02X10366		Flat Washer/water Valve		Appelez-nous	-
808	WH02X10356		Flat Washer/water Valve		Appelez-nous	-
810	WH02X10357		Flat Washer/water Valve		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
