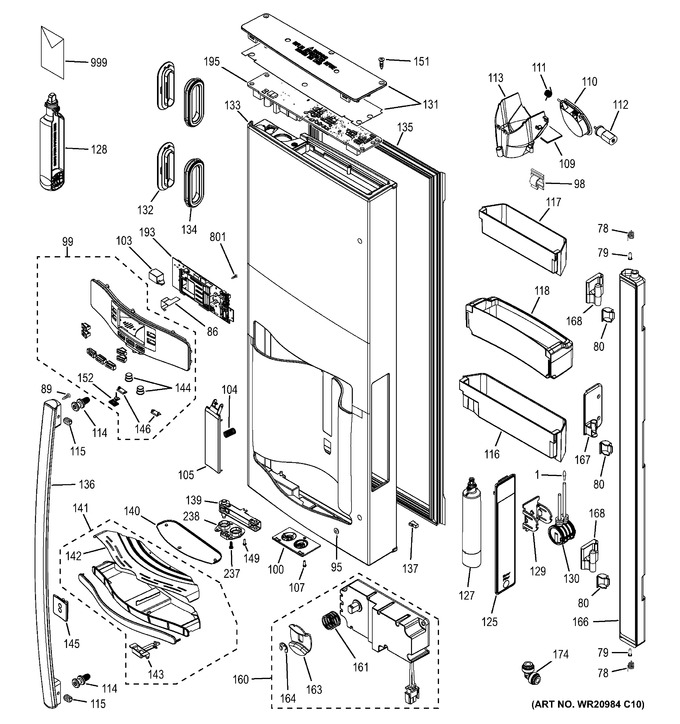

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WR01X11068		Tube Plug		Appelez-nous	-
78	WG03L05095		Spring Hinge Mullion   (Replaces: WR01X11052)			Immediately	$ 10.86
79	WR01X11053		Sleeve Spring Mullion		Appelez-nous	-
80	WR02X13739		Hinge Cap		Appelez-nous	-
86	WR24X10293		Shield Autofill Asm		Appelez-nous	-
89	WR01X11044		Scr 10-32 B Rns .353 S		Appelez-nous	-
95	WR01X11051		Washer		Appelez-nous	-
98	WR01X11064		Clip Phgl		Appelez-nous	-
99	WG03F05718		Display Asm   (Replaces: WR17X13206)				$ 216.63
100	WR55X11122		Cover Led Asm Lh Door		Appelez-nous	-
103	WG03A00265		Speaker   (Replaces: WR55X11139)				$ 49.33
104	WR01X11027		Spring		Appelez-nous	-
105	WG03L00831		Cover Paddle Asm Ss   (Replaces: WR17X13060)				$ 73.11
107	WR01X11029		Scr 8-18 Flp 1/2 S		Appelez-nous	-
109	WR17X13059		Cover Funnel		Appelez-nous	-
110	WR17X13057		Duct Door Asm		Appelez-nous	-
111	WR01X11017		Spring Duct Door		Appelez-nous	-
112	WR60X10344		Motor Duct Door		Appelez-nous	-
113	WR17X13058		Funnel Clear		Appelez-nous	-
114	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
115	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35
116	WR71X11041		Bin Door Ice Btm Asm		Appelez-nous	-
117	WR71X11045		Bin Ice Door Top Lh		Appelez-nous	-
118	WR71X11046		Bin Ice Door Mid Lh		Appelez-nous	-
125	WG03L05188		Filter Door Asm Dgy   (Replaces: WR02X13742)				$ 21.63
127	PMRPWFE		Refrigeration Water Filt   (Replaces: RPWF)				$ 84.14
128	WR17X13068		Plug Bypass Asm Pn55-681		Appelez-nous	-
129	WR17X13069		Brkt Filter Manifold		Appelez-nous	-
130	WR02X13675		Manifold & Plug Asm		Appelez-nous	-
131	WR17X13205		Pcb Cover Asm Dgy		Appelez-nous	-
132	WR14X10367		Collar Gasket		Appelez-nous	-
133	WR78X12956		Door Disp Foam Asm Ff Lh		Appelez-nous	-
134	WR14X10364		Port Gasket		Appelez-nous	-
135	WG03L09792		Gasket Ff Dgy   (Replaces: WR14X10377)				$ 145.45
136	WG03F05190		Arc Handle Asm Ff   (Replaces: WR12X11016)				$ 181.23
137	WG03L05211		Latch Filter Door   (Replaces: WR11X10032)				$ 17.01
139	WR11X20690		Closure Door Asm Lh		Appelez-nous	-
140	WR17X13093		Tray Guard Asm		Appelez-nous	-
141	WR17X13110		Tray Recess Asm Gy		Appelez-nous	-
142	WR17X13109		Grill Recess Tray		Appelez-nous	-
143	WR02X13638		Lever Tray Lock		Appelez-nous	-
144	WR55X20732		Transducer Assembly		Appelez-nous	-
145	WR55X20731		Housing Sensor Asm		Appelez-nous	-
146	WR02X13655		Shield Led Light				$ 19.05
149	WG03A00428		Screw 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
151	WR01X11028		Scr 8-18 Flp 1/2 S		Appelez-nous	-
152	WR13X10980		Cover Usb		Appelez-nous	-
160	WR60X10345		Auger Motor Asm		Appelez-nous	-
161	WR02X13645		Spring Clutch Am		Appelez-nous	-
163	WR02X13647		Clutch Coupling Am		Appelez-nous	-
164	WR02X13648		E Clip		Appelez-nous	-
166	WR17X13240		Mullion Articulating Asm		Appelez-nous	-
167	WR13X10984		Hinge Center Mullion		Appelez-nous	-
168	WR13X10985		Hinge Mullion		Appelez-nous	-
174	WR02X13737		Connector 90 Deg 5/16		Appelez-nous	-
193	WG03F09235		Board Asm Graphic Lcd   (Replaces: WR55X20730)				$ 604.07
195	WG03A04315		Pcb Asm Door Control   (Replaces: WR55X11186)				$ 156.86
237	WR01X11032		Scr 10-24 Ab Rnt 20 5/8		Appelez-nous	-
801	WD02X10129		6-19 X 1/4 Torx Pan Head		Appelez-nous	-
999	31-45495		Pm Quick Install En		Appelez-nous	-
999	31-45496		Pm Quick Install Fr & Sp		Appelez-nous	-
999	31-51835		Pm Mini Wiring Manual		Appelez-nous	-
999	49-60681		Pm Quick Use & Care En		Appelez-nous	-
999	49-60683		Pm Guide Owners Web En		Appelez-nous	-
999	49-60682		Pm Quick Use & Care Fr		Appelez-nous	-
