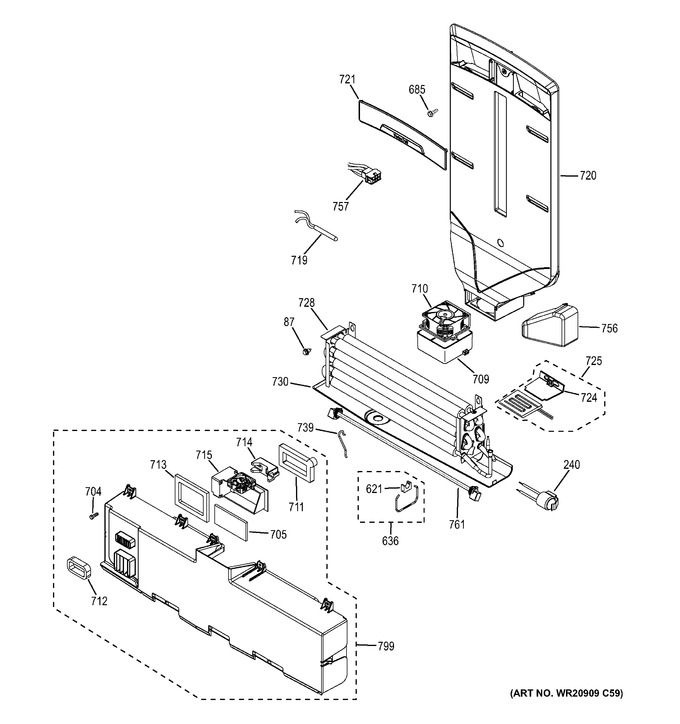

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
87	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.97
240	WR50X10109		Thermostat Defrost Ff		Appelez-nous	-
621	WR02X10518		Holder Element		Appelez-nous	-
636	WR02X13678		Holder Element Asm		Appelez-nous	-
685	WR1X1804		Scr 8-18 Ab Hxw 3/4 Wh		Appelez-nous	-
704	WR01X11061		Scr 8-18 Hi/lo Hwx 3/4		Appelez-nous	-
705	WR02X13731		Gasket Ff Fan Front		Appelez-nous	-
709	WR24X10292		Boot Fan Ff Motor		Appelez-nous	-
710	WG03F06676		Fan Asm Ff   (Replaces: WR60X10357)			Immediately	$ 127.15
711	WR24X10289		Gasket Damper Mp		Appelez-nous	-
712	WR02X13665		Gasket Meat Pan Return		Appelez-nous	-
713	WR02X13664		Gasket Meat Pan Return		Appelez-nous	-
714	WR02X13663		Support Insul Mp Fan		Appelez-nous	-
715	WG03F05123		Damper Fan Asm   (Replaces: WR60X10343)				$ 173.80
719	WR55X11152		Sensor Temperature		Appelez-nous	-
720	WR17X13234		Duct Tower Asm Ff		Appelez-nous	-
721	WR17X13243		Diverter & Badge Asm		Appelez-nous	-
724	WR02X13669		Bracket Heater		Appelez-nous	-
725	WR51X10136		Heater & Bracket Asm Del		Appelez-nous	-
728	WR85X10154		Evap & Tube Asm Ff		Appelez-nous	-
730	WR17X13091		Trough Drain Ff		Appelez-nous	-
739	WR51X10133		Heater Conduction Ff		Appelez-nous	-
756	WR17X13048		Cover Connector Ff Fan		Appelez-nous	-
757	WR23X10743		Harness Defrost Ff		Appelez-nous	-
761	WR51X10132		Heater Def Asm Ff		Appelez-nous	-
799	WG03L02112		Cover Evap Ff Asm   (Replaces: WR17X13177)				$ 285.03
