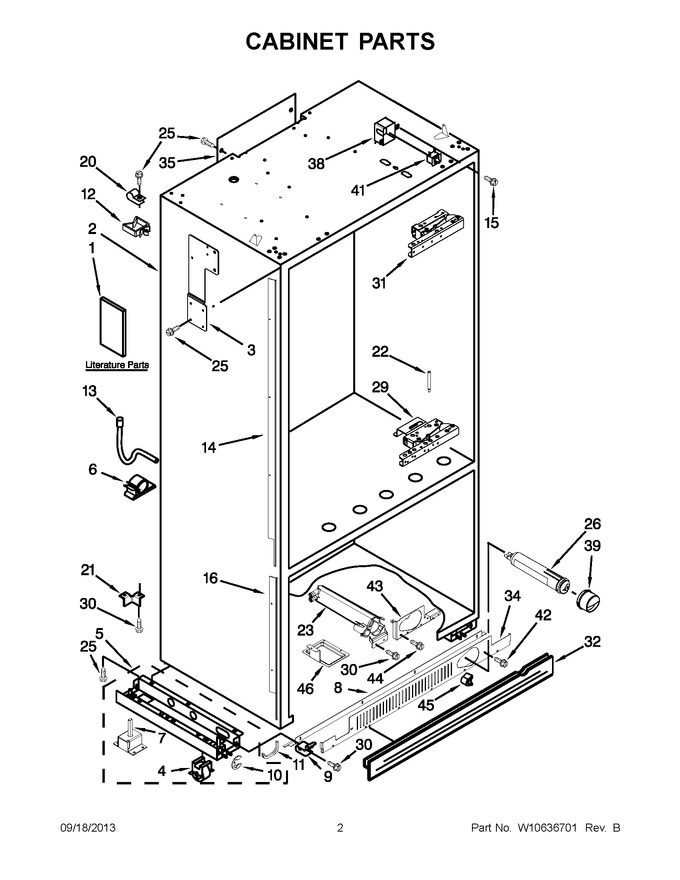

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10303991 | Use & Care Guide |
|
- | |||||
| 1 | W10246796 | Energy Guide |
|
- | |||||
| 1 | W10483327 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2317840 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10234147 | Main Control Service Sheet |
|
- | |||||
| 1 | W10379137 | Installation Instructions |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | W10188499 | Support-grille (left Hand) |
|
$ 66.70 | |||||
| 3 | W10188500 | Support-grille (right Hand) |
|
$ 115.89 | |||||
| 4 | WPW10138054 | Assembly, Roller (Replaces: W10138054) |
|
$ 45.34 | |||||
| 5 | W10860448 | Support, Leveler Assembly (right Hand) (Replaces: W10138423) |
|
Immediately | $ 383.00 | ||||
| 5 | W10860229 | Support, Leveler Assembly (left Hand) (Replaces: W10279275) |
|
$ 381.83 | |||||
| 6 | 2004514 | Clip |
|
- | |||||
| 7 | 2005032 | Leveler, Adjustable |
|
Immediately | $ 200.07 | ||||
| 8 | WPW10250962 | Grille Trim Top (Replaces: W10250962) |
|
$ 133.61 | |||||
| 9 | W10839844 | Mounting Bracket, Grill (Replaces: 2307640) |
|
$ 43.26 | |||||
| 10 | 2006841 | Ring, Retainer |
|
$ 92.66 | |||||
| 11 | 2307584 | Grommet, Crossover Tube |
|
$ 23.40 | |||||
| 12 | W10129069 | Clip, Tube |
|
- | |||||
| 13 | 2314064 | Tube, Drain |
|
$ 93.88 | |||||
| 14 | W10207207 | Retainer, Side |
|
$ 214.60 | |||||
| 15 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 16 | W10207244 | Retainer, Side |
|
$ 213.58 | |||||
| 20 | W10331955 | Clamp, Tube |
|
- | |||||
| 21 | 2006617 | Bracket, Base Support |
|
- | |||||
| 22 | W10234202 | Pin, Door Stop |
|
$ 91.73 | |||||
| 23 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 270.85 | ||||
| 25 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 26 | EDR3RXD1B | Filter, Water (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 29 | W10136731 | Hinge, Bottom |
|
$ 516.30 | |||||
| 30 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 31 | W10167398 | Hinge Door, Ref Top (left Hand) |
|
$ 407.94 | |||||
| 31 | W10167397 | Hinge Door, Ref Top (right Hand) |
|
$ 557.77 | |||||
| 32 | WPW10188549 | Skirt, Grille (bottom) (Replaces: W10188549) |
|
$ 144.20 | |||||
| 34 | W11739146 | Grille Base, Front (Replaces: W10189198) |
|
$ 212.66 | |||||
| 35 | W10426957 | Cover-assembly, Air Duct |
|
- | |||||
| 38 | W10167387 | Cover, Switch (left Hand) |
|
$ 77.58 | |||||
| 38 | W10167341 | Cover, Switch (right Hand) |
|
$ 77.09 | |||||
| 39 | WP2260518B | Cap, Water Filter (black) (Replaces: 2260518B) |
|
Immediately | $ 33.95 | ||||
| 41 | W11384469 | Switch, Light (Replaces: C3680314) |
|
Immediately | $ 39.09 | ||||
| 42 | WP489464 | Screw (Replaces: W10005050) |
|
Immediately | $ 8.38 | ||||
| 43 | W11755873 | Bracket, Filter (Replaces: W10348782) |
|
$ 80.33 | |||||
| 44 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 45 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 46 | 2318189 | Tray, Filter Drip |
|
$ 148.73 |
