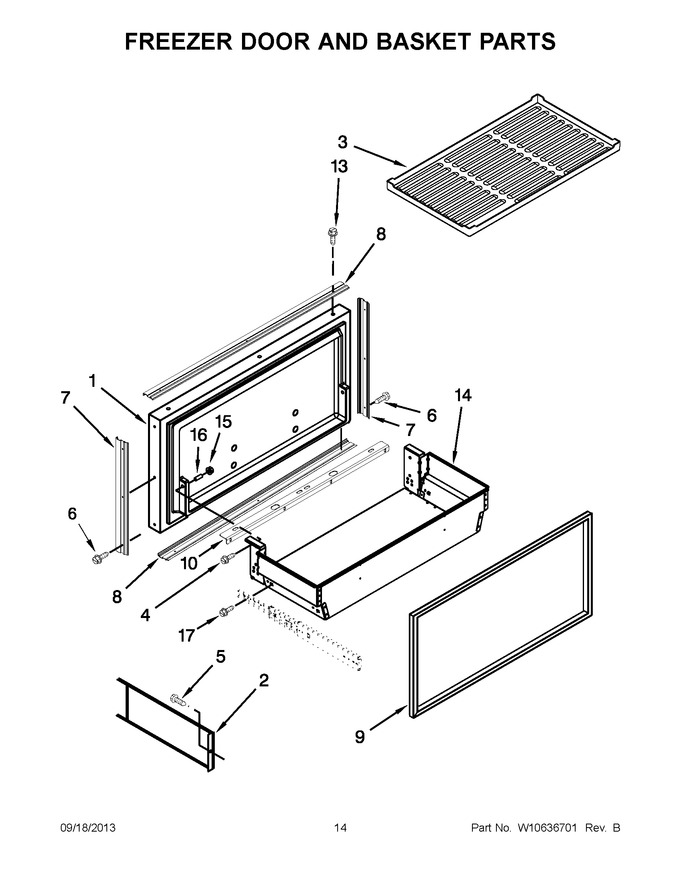

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10259063		Freezer Door		Appelez-nous	-
2	2317101		Divider, Basket		Appelez-nous	-
3	W10665413		Mat, Basket   (Replaces: W10183770)				$ 283.65
4	W10135775		Screw				$ 14.93
5	WP488234		Screw   (Replaces: W10135792)				$ 7.08
6	W10109030		Screw				$ 15.35
7	W10203455		Trim-door, Side				$ 89.41
8	W10203453		Trim-door, Top & Bottom				$ 117.61
9	WPW10192907		Door Gasket, Magnetic   (Replaces: W10192907)			Immediately	$ 363.09
10	WPW10203457		Bracket, Mounting Panel   (Replaces: W10203457)				$ 70.93
13	W10825422		Screw (white)   (Replaces: 8281251)				$ 11.36
14	W10258183		Basket Assembly, Freezer		Appelez-nous	-
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
16	W10001190		Washer				$ 8.80
17	W10135775		Screw				$ 14.93
