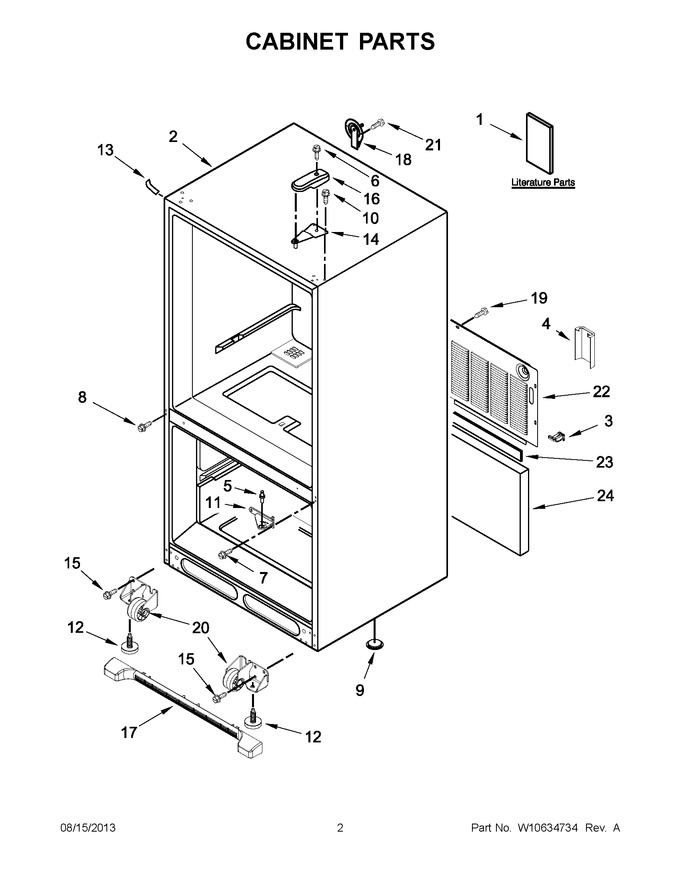

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10517966 | Tech Sheet |
|
- | |||||
| 1 | W10258247 | Energy Tag |
|
- | |||||
| 1 | W10366204SP | Use & Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W10485986 | Guide, Waterline |
|
Immediately | $ 12.95 | ||||
| 4 | W10208592 | Cover, Valve |
|
- | |||||
| 5 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 6 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 7 | W11573362 | Screw (Replaces: W10339086) |
|
$ 14.72 | |||||
| 8 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 9 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 10 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 11 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 69.79 | |||||
| 11 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 12 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 13 | 12587703W | Cover, Corner (white) |
|
$ 22.90 | |||||
| 13 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 14 | WP12566606ED | Top Hinge (right Hand) (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 15 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 16 | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 49.71 | |||||
| 16 | 67001014 | Cover, Hinge (white) (Replaces: 12477601W) |
|
$ 22.34 | |||||
| 17 | WPW10534166 | Grille Assembly (includes Clips) (white) (Replaces: W10534166) |
|
Immediately | $ 76.61 | ||||
| 17 | WPW10534167 | Grille Assembly (includes Clips) (black) (Replaces: W10534167) |
|
$ 91.42 | |||||
| 18 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 19 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 20 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 20 | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 21 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 22 | W10210978 | Cover, Unit |
|
$ 201.78 | |||||
| 24 | 12820505 | Insulation |
|
$ 71.70 |
