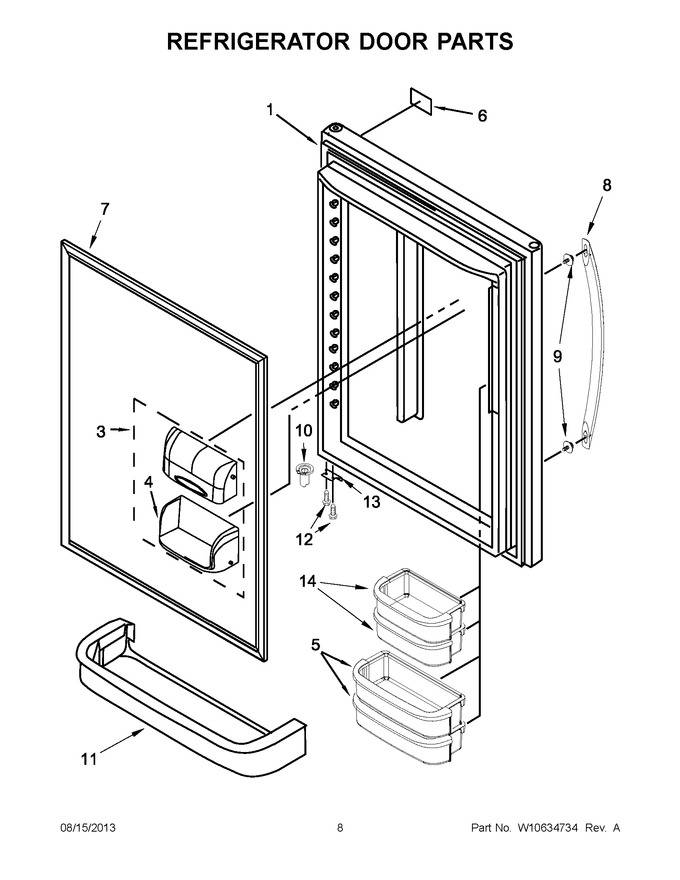

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109402BQ | Refrigerator Door (w/ Insulation) (black) (Replaces: 13109402B) |
|
$ 931.31 | |||||
| 1 | 13109402WQ | Refrigerator Door (w/ Insulation) (white) (Replaces: 13109402W) |
|
$ 1,100.83 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | WPW10391355 | Nameplate (white) (Replaces: W10391355) |
|
$ 75.65 | |||||
| 6 | WPW10393265 | Nameplate (grey) (Replaces: W10393265) |
|
Immediately | $ 73.15 | ||||
| 7 | WPW10436245 | Gasket, Door Magnetic (black) (Replaces: W10436245) |
|
$ 362.36 | |||||
| 7 | WPW10443309 | Gasket, Door Magnetic (white) (Replaces: W10443309) |
|
Immediately | $ 365.24 | ||||
| 8 | W11351146 | Handle, Door (black) (Replaces: W10222985KN) |
|
$ 189.08 | |||||
| 8 | WPW10222984K | Handle, Door (white) (Replaces: W10222984KN) |
|
$ 205.46 | |||||
| 9 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 10 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 10 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 11 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 104.79 | ||||
| 12 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 13 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 13 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 14 | WPW10351081 | Bucket, Small (Replaces: W10351081) |
|
Immediately | $ 73.03 |
