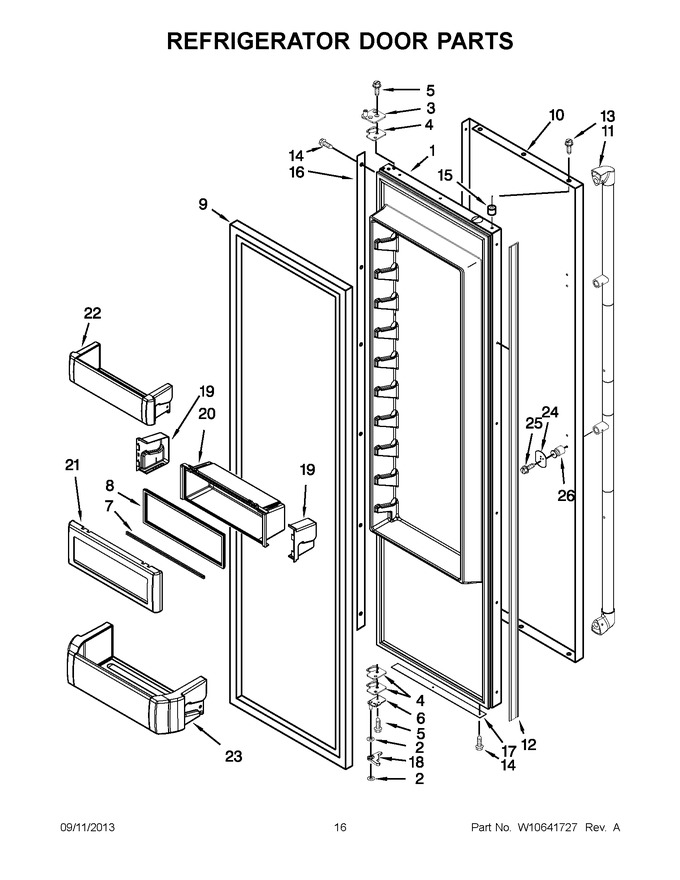

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193490		Door Assembly, Refrigerator		Appelez-nous	-
2	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
3	W11673500		Assembly, Top Hinge   (Replaces: W10485980)			Immediately	$ 108.07
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	2302878		Hinge Assembly, Bottom			Immediately	$ 91.01
7	W11448696		Rail, Lid   (Replaces: 2222796)				$ 153.99
8	W11448696		Gasket, Utility Bin   (Replaces: 2222982)				$ 153.99
9	WP2266902		Door Gasket, Magnetic   (Replaces: 2222811)				$ 330.30
10	W10523732		Skin, Door		Appelez-nous	-
11	12859108		Handle, Door				$ 284.63
12	2309060		Spacer, Handle Side Door		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
15	2005433		Spacer, Door Skin Top				$ 23.33
16	W10142296		Spacer, Door		Appelez-nous	-
17	2004934		Spacer, Door Skin Bottom		Appelez-nous	-
18	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
19	WPW10323172		End Cap (right Hand)   (Replaces: W10323172)				$ 8.60
19	WPW10323173		End Cap (left Hand)   (Replaces: W10323173)				$ 8.60
20	W11448696		Bin, Utility Center   (Replaces: W10323036)				$ 153.99
21	W11553221		Door, Utility Bin   (Replaces: 2257616)			Immediately	$ 69.64
22	W10323599		Bin, Door-shallow				$ 146.61
23	W10323747		Shelf, Door (gallon)				$ 145.36
24	W10127710		Plate, Handle Door			Immediately	$ 25.94
25	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
26	WPW10153450		Stud, Handle Mounting   (Replaces: W10153450)				$ 87.26

    View Diagram in Separate Window       Print Part List
