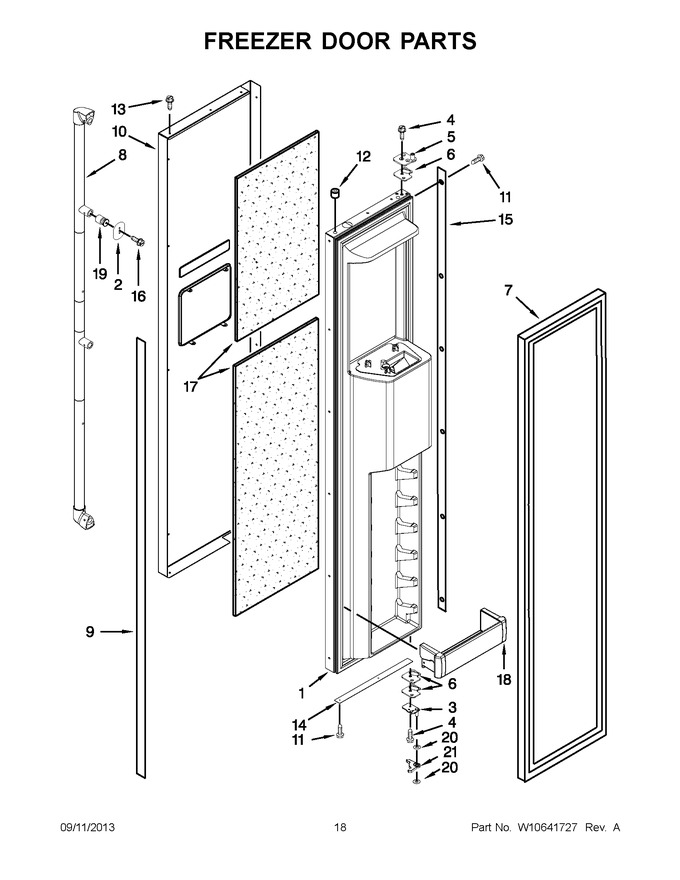

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10292432		Door Assembly, Freezer		Appelez-nous	-
2	W10127710		Plate, Handle Door			Immediately	$ 25.94
3	W11752085		Assembly, Bottom Hinge   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W11673500		Assembly, Top Hinge   (Replaces: W10485980)			Immediately	$ 108.07
6	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 329.66
8	WP12859107		Handle, Door   (Replaces: 12859107)				$ 388.30
9	2309060		Spacer, Handle Side Door		Appelez-nous	-
10	W10523751		Skin, Door		Appelez-nous	-
11	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
12	2005433		Spacer, Door Skin Top				$ 23.33
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	2257385		Spacer, Door-skin (bottom)		Appelez-nous	-
15	W10142296		Spacer, Door		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
17	W10159582		Filler, Door (bottom)		Appelez-nous	-
17	W10159585		Filler, Door (top)		Appelez-nous	-
18	W10323602		Bin, Shallow				$ 98.03
19	WPW10153450		Stud, Handle Mounting   (Replaces: W10153450)				$ 87.26
20	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
21	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28

    View Diagram in Separate Window       Print Part List
