SELECT A DIAGRAM
01 - Cover Sheet

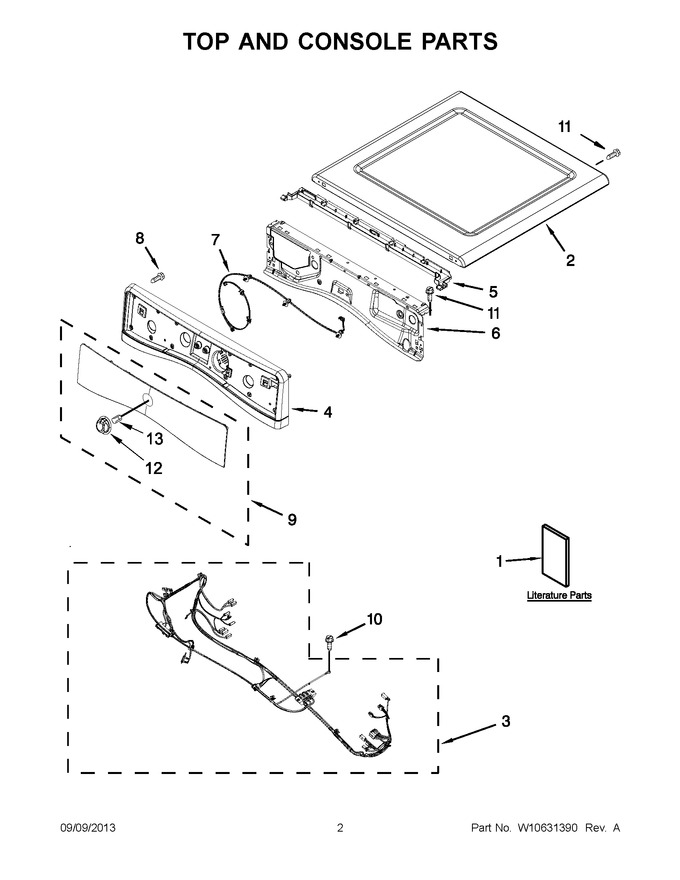

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - W10601030 Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10581079 | Use And Care Guide |
|
- | |||||
| 1 | W10097114 | Tech Sheet |
|
- | |||||
| 2 | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 273.29 | |||||
| 3 | W10580764 | Harness, Main |
|
- | |||||
| 4 | WPW10463687 | Panel, Console Assembly (chrome Shadow) (Replaces: W10463687) |
|
$ 264.65 | |||||
| 5 | WPW10653575 | Water Channel (Replaces: W10259210) |
|
$ 81.85 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 73.09 | |||||
| 7 | W10837344 | Cable, User Interface (Replaces: W10540653) |
|
$ 30.25 | |||||
| 8 | W10853898 | Screw (Replaces: W10219342) |
|
$ 7.36 | |||||
| 9 | W10568544 | Iml Assembly (chrome Shadow) |
|
- | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 12 | W10391535 | Assembly, Knob |
|
$ 25.18 | |||||
| 13 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 |
