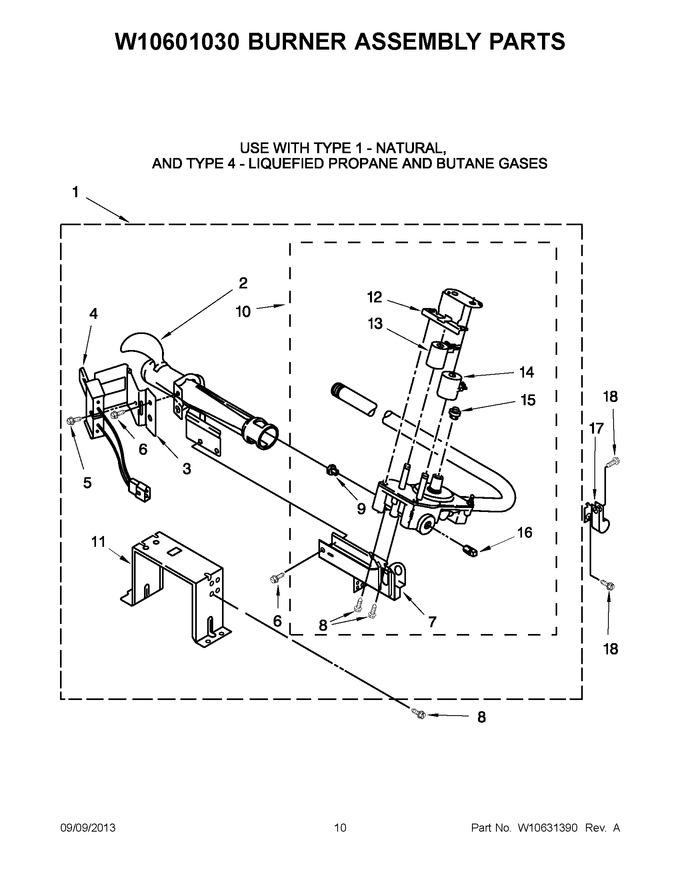

06 - W10601030 Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10601030		Burner Assembly		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 188.87
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	WPW10599533		Ignitor   (Replaces: W10599533)				$ 123.31
5	WPW10366705		Screw   (Replaces: W10366705)				$ 7.88
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
7	3389871		Base, Burner				$ 83.25
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
9	WP15418		Orifice, Burner (type 1 (natural))   (Replaces: 15418)				$ 37.32
9	15422		Orifice, Burner (type 4) (butane)				$ 3,441.42
10	W10601009		Valve, Gas		Appelez-nous	-
11	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 32.85
14	279834		Coil, 60 Hz (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 32.85
15	WP694425		Blocking Pin   (Replaces: 694425)				$ 80.02
16	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
17	3978776		Bracket, Gas Pipe		Appelez-nous	-
18	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
NI	N/P		Following Parts Not .illustrated		Appelez-nous	-
NI	W10444066		Conversion Kit (type 4) L.p.g. To Type (1) Natural		Appelez-nous	-
