SELECT A DIAGRAM

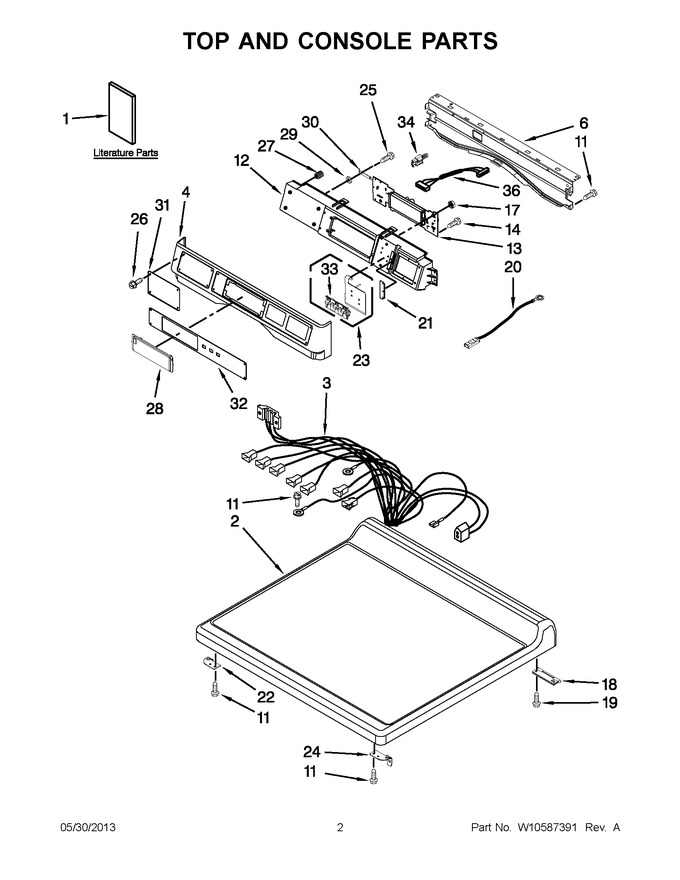

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10096909 Burner Assembly Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10233253		User Instruction		Appelez-nous	-
1	W10379555		Installation Instruction		Appelez-nous	-
1	W10239197		Tech Sheet		Appelez-nous	-
2	W11622909		Top (white)   (Replaces: W10137410)		Appelez-nous	-
3	W10555115		Harness, Main		Appelez-nous	-
4	W10779120		Console (outer)   (Replaces: W10137459)				$ 138.64
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
11	WP489464		Screw   (Replaces: W10142290)			Immediately	$ 8.38
12	W11790400		Console (inner)   (Replaces: W10137427)		Appelez-nous	-
13	WPW10166385		User-interface Assembly   (Replaces: W10166387)			Immediately	$ 611.57
14	489136		Screw				$ 10.80
17	WPW10139046		Nut   (Replaces: W10139046)				$ 9.23
18	WP8565018		Hinge & Pin Assembly (white)   (Replaces: 8565018)				$ 115.34
19	WP489464		Screw   (Replaces: W10142290)			Immediately	$ 8.38
20	W10257051		Jumper, Static		Appelez-nous	-
21	W10187276		Seal-console		Appelez-nous	-
22	W10137445		Bracket, Top Panel (left)		Appelez-nous	-
23	WPW10135255		Switch, Membrane & Backer Plate   (Replaces: W10135255)				$ 219.41
24	W10137444		Bracket, Top Panel (right)		Appelez-nous	-
25	WP488234		Screw   (Replaces: 488234)				$ 7.08
26	WPW10137457		Screw   (Replaces: W10137457)				$ 7.85
27	WPW10189313		Insert   (Replaces: W10189313)				$ 9.23
28	W11637765		Cover, Display   (Replaces: W10267645)				$ 69.59
29	W10189075		Washer, Brass				$ 19.13
30	W10532923		Ground-jumper, Tab				$ 15.12
31	W10137461		Dispenser, Fascia		Appelez-nous	-
32	W10334891		Fascia-console		Appelez-nous	-
33	WPW10424308		Button, Push   (Replaces: W10131113)			Immediately	$ 21.44
34	W11129439		Jumper, Switch Service/vault   (Replaces: W10133282)				$ 17.66
36	W10166307		Harness, Communication				$ 41.32

    View Diagram in Separate Window       Print Part List
