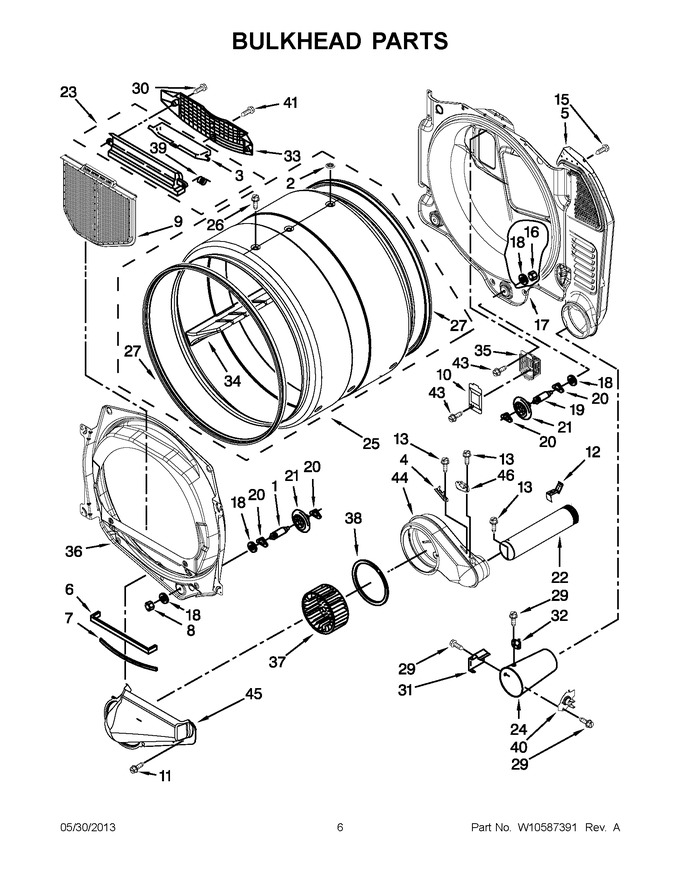

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | W10665050 | Cap, Plug (Replaces: W10128544) |
|
$ 20.15 | |||||
| 3 | W10181925 | Door, Lint Screen |
|
$ 18.96 | |||||
| 4 | WP3392519 | Fuse, Thermal (91 C) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 5 | W11168650 | Assembly, Air Duct (Replaces: 3394346) |
|
$ 97.66 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 8.37 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 8.37 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | W10120998 | Screen, Lint (Replaces: W10596627) |
|
$ 67.16 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 11 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 12 | W11684573 | Clip, Exhaust (Replaces: 8572105) |
|
$ 8.17 | |||||
| 13 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | WPW10080170 | Bulkhead, Rear (Replaces: W10080170) |
|
$ 356.42 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | W10225176 | Pipe, Exhaust (Replaces: W10225179) |
|
- | |||||
| 23 | W11197085 | Assembly, Outlet Housing (Replaces: W10181928) |
|
$ 44.99 | |||||
| 24 | WP8573824 | Funnel-burner (Replaces: 8573824) |
|
$ 185.29 | |||||
| 25 | W10549541 | Drum Complete Assembly |
|
- | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 29 | W10080280 | Screw |
|
- | |||||
| 30 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 31 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 32 | W10853395 | Thermostat, High Limit (Replaces: W10206703) |
|
- | |||||
| 33 | W11086603 | Grille, Outlet (Replaces: W10181926) |
|
Immediately | $ 36.90 | ||||
| 34 | W10852390 | Baffle, Drum (Replaces: W10153409) |
|
$ 146.31 | |||||
| 35 | 8578825 | Bracket, Drum Light |
|
$ 21.92 | |||||
| 36 | 8565061 | Bulkhead, Front |
|
$ 253.62 | |||||
| 37 | WPW10349492 | Wheel, Blower (Replaces: W10349492) |
|
Immediately | $ 120.33 | ||||
| 38 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 39 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 93.47 | |||||
| 40 | WPW10181549 | Cut-off, Thermal (Replaces: W10181549) |
|
$ 112.68 | |||||
| 41 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 8.28 | ||||
| 43 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 44 | W10888146 | Housing, Blower (Replaces: W10119255) |
|
$ 106.79 | |||||
| 45 | WPW10128606 | Assembly, Lint Duct (Replaces: W10286419) |
|
$ 217.48 | |||||
| 46 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 |
