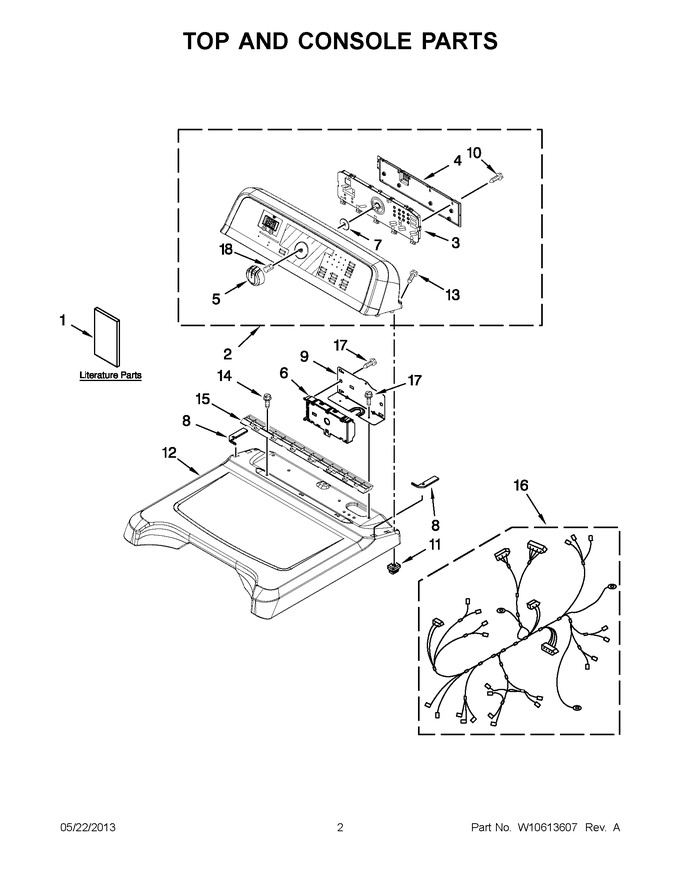

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10562335 | Instructions, Installation |
|
- | |||||
| 1 | W10562334 | Guide, Use & Care |
|
- | |||||
| 1 | W10393006 | Sheet, Tech |
|
- | |||||
| 2 | W10562320 | Panel, Console (white) |
|
$ 315.92 | |||||
| 2 | W10562321 | Panel, Console (cosmetallic) |
|
Immediately | $ 558.36 | ||||
| 3 | WPW10388669 | Assembly, User Interface (Replaces: W10388669) |
|
$ 233.22 | |||||
| 4 | W10051124 | Cover, Ui Rear |
|
$ 263.67 | |||||
| 5 | WPW10571098 | Assembly, Control Knob (grey) (Replaces: W10571098) |
|
$ 61.93 | |||||
| 6 | WPW10536008 | Control, Electronic (Replaces: W10536008) |
|
Immediately | $ 222.68 | ||||
| 7 | 8572039 | Seal, User Interface |
|
- | |||||
| 8 | W10219695 | Seal, Top (left) |
|
- | |||||
| 8 | W10219694 | Seal, Top (right) |
|
- | |||||
| 9 | 8563853 | Bracket, Machine Controller |
|
- | |||||
| 10 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 11 | W10112673 | Clip, Console |
|
$ 9.75 | |||||
| 12 | W10338836 | Top (includes Item 8) (cosmetallic) |
|
$ 142.15 | |||||
| 12 | W10223157 | Top (includes Item 8) (white) |
|
$ 159.40 | |||||
| 13 | W10131402 | Screw |
|
- | |||||
| 14 | WP33001882 | Screw (Replaces: 337686) |
|
$ 83.71 | |||||
| 15 | 8558863 | Bracket, Console |
|
$ 33.78 | |||||
| 16 | W10319802 | Harness, Main |
|
- | |||||
| 17 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 18 | W10153920 | Clip, Spring |
|
- |
