SELECT A DIAGRAM

01 - Top And Console Parts

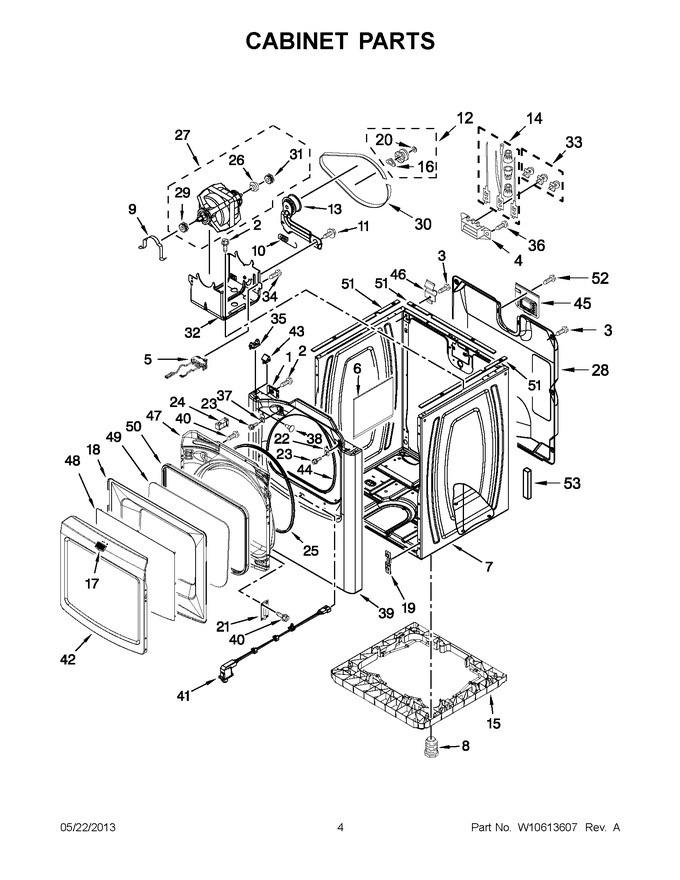

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.96
2	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	WPW10411937		Switch, Broken Belt   (Replaces: W10411937)			Immediately	$ 36.06
6	W10123956		Panel, Dampening		Appelez-nous	-
7	W10223154		Cabinet (includes Item 51) (white)   (Replaces: W10183827)				$ 354.38
7	W10304162		Cabinet (includes Item 51) (cosmetallic)				$ 389.15
8	W10813918		Foot, Dryer   (Replaces: W10363894)			Immediately	$ 13.70
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
13	WPW10547292		Assembly, Idler   (Replaces: W10547292)			Immediately	$ 43.98
14	279318		Terminal, Brass & Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
15	W10363887		Riser, Full		Appelez-nous	-
16	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
17	W10492808		Badge				$ 59.82
18	WPW10532209		Bezel, Door   (Replaces: W10304170)				$ 206.15
19	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 16.34
20	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
21	W10249708		Assembly, Hinge (white)		Appelez-nous	-
21	W10463337		Assembly, Hinge (cosmetallic)				$ 81.15
22	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 29.69
23	WP3400805		Screw   (Replaces: 3400805)				$ 7.55
24	WPW10111905		Assembly, Door Catch   (Replaces: W10111905)			Immediately	$ 7.59
25	W10239307		Seal, Door   (Replaces: W10221653)				$ 141.27
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
27	WPW10448896		Motor, Assembly 60 Hz.   (Replaces: W10460374)			Immediately	$ 343.09
28	W10140148		Panel, Rear				$ 139.84
29	W10139247		Pulley, Blower			Immediately	$ 133.55
30	WPW10136934		Belt, Drive   (Replaces: W10136934)			Immediately	$ 48.60
31	W10136930		Pulley, Motor				$ 48.18
32	8547158		Bracket, Motor				$ 65.31
33	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
34	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
35	WP8568303		Locator, Snap Down   (Replaces: 8568303)				$ 7.94
36	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
37	W10295405		Assembly, Strike & Plate   (Replaces: W10111906)				$ 115.09
38	W10144494		Plug, Hole				$ 35.14
39	W10463261		Panel, Front (white)				$ 165.97
39	W10463263		Panel, Front (cosmetallic)				$ 168.69
40	WP488627		Screw   (Replaces: 342055)				$ 8.11
41	W11177687		Assembly, Door Switch   (Replaces: W10350909)				$ 88.15
42	WPW10344649		Door, Outer (cosmetallic)   (Replaces: W10344649)				$ 198.78
42	W10252478		Door, Outer (white)				$ 219.91
43	WP8576625		Lock, Top Front   (Replaces: 8576625)				$ 7.60
44	W10044490		Seal, Front Panel				$ 34.05
45	W10110241		Cover, Terminal Block				$ 43.62
46	WP8066217		Hinge, Top   (Replaces: 238088)				$ 8.21
47	W10304172		Door, Inner (cosmetallic)				$ 133.40
47	W10111878		Door, Inner (white)				$ 218.78
48	W10394552		Window, Outer				$ 201.61
49	WPW10111857		Glass, Inner Door   (Replaces: W10111857)				$ 306.19
50	W10111859		Gasket, Inner Door				$ 121.25
51	WPW10157932		Seal, Foam   (Replaces: W10316529)			Immediately	$ 8.45
52	W10850756		Screw   (Replaces: 8533974)				$ 8.20
53	3350013		Foam		Appelez-nous	-
NI	49621		Foot, Optional (extended Lengthpackage Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
