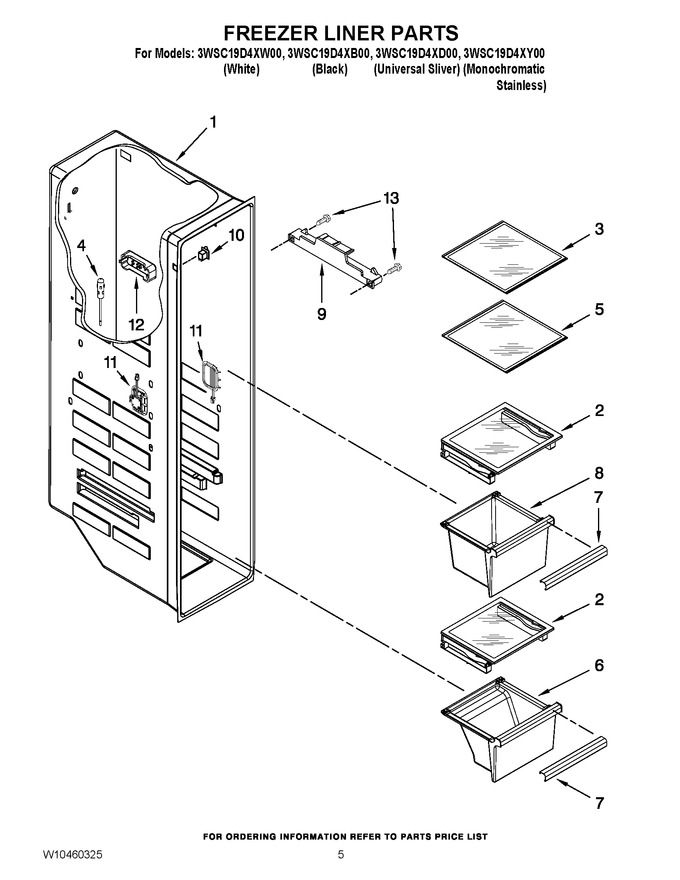

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10260977		Cover Assy		Appelez-nous	-
3	WPW10269160		Shelf, Glass Upper   (Replaces: W10269160)				$ 151.26
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 32.00
5	W11098699		Shelf, Glass Lower   (Replaces: W10269161)				$ 216.51
6	W10256861		Pan, Freezer Upper Also Order 7		Appelez-nous	-
7	W10281629		Trim, Handle		Appelez-nous	-
8	W10256858		Pan, Freezer Lower		Appelez-nous	-
9	W10294289		Slide, Container		Appelez-nous	-
10	W11457217		Switch, Rocker Arm   (Replaces: 2321285)				$ 38.18
11	W11683241		Led Light Assy   (Replaces: W10279030)			Immediately	$ 259.02
12	W10425253		Cover, Thermistor   (Replaces: W10356632)		Appelez-nous	-
13	718257		Screw   (Replaces: 489100)		Appelez-nous	-
