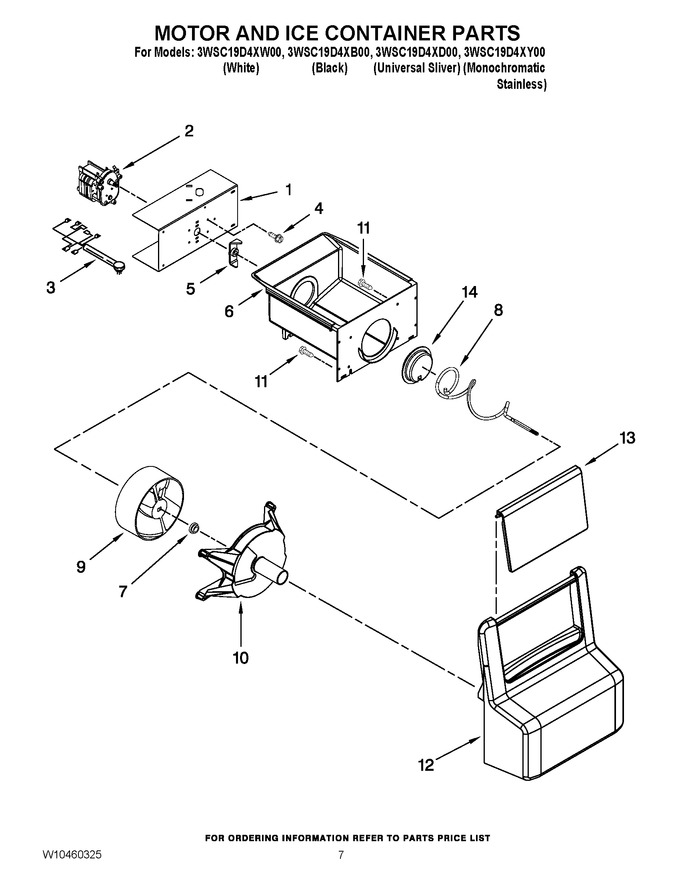

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10331695		Bracket, Motor		Appelez-nous	-
2	WP2321276		Motor, Dispenser   (Replaces: 2321276)				$ 283.50
3	W10298059		Wire Assembly, Ice Despenser		Appelez-nous	-
4	WP489399		Screw   (Replaces: 489399)				$ 6.95
5	WPW10169511		Coupling, Motor   (Replaces: W10169511)				$ 23.34
6	W10294543		Ice Container				$ 133.48
7	W10189661		Spacer, Step				$ 50.93
8	W10294285		Auger		Appelez-nous	-
9	4388736		Drum   (Replaces: 2305377)				$ 92.35
10	W10465384		Floating Baffle		Appelez-nous	-
11	WP488787		Screw   (Replaces: 488886)				$ 10.58
12	W10276185		Front Cover, Ice Container		Appelez-nous	-
13	W11661892		Ice Door   (Replaces: W10189202)				$ 50.28
14	W10749708		Coupling, Auger   (Replaces: 983668)				$ 26.13
100	WPW10323143		Ice Container (complete)   (Replaces: W10323143)				$ 248.98
