SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts

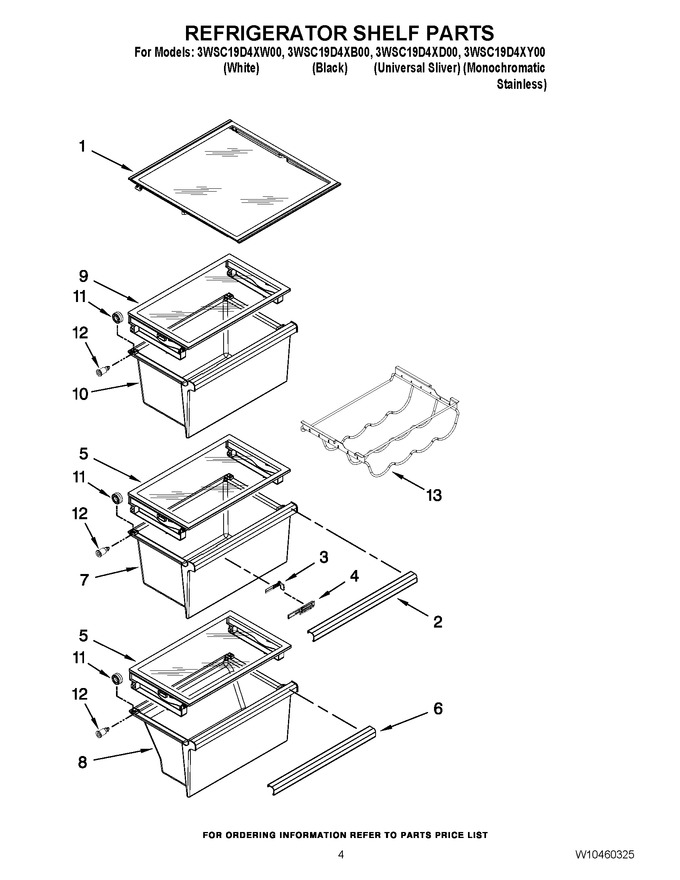

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10269156		Shelf Assy   (Replaces: W10269156)				$ 159.82
2	W10309635		Trim, Handle		Appelez-nous	-
3	W11746089		Slide, Humidity   (Replaces: W10282883)				$ 30.50
4	W11746089		Housing, Humidity   (Replaces: W10282880)				$ 30.50
5	W10290874		Cover, Assy		Appelez-nous	-
6	W10309636		Trim, Handle   (Replaces: W10281628)		Appelez-nous	-
7	WPW10296843		Crisper Pan (also Order 2, 3, & 4)   (Replaces: W10296843)				$ 236.30
8	W10296845		Meat Pan (also Order 6)		Appelez-nous	-
9	W10425589		Shelf, Snack Pan		Appelez-nous	-
10	W10387376		Snack Pan		Appelez-nous	-
11	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 15.74
12	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
13	W10257377		Wine Rack		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
