SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts

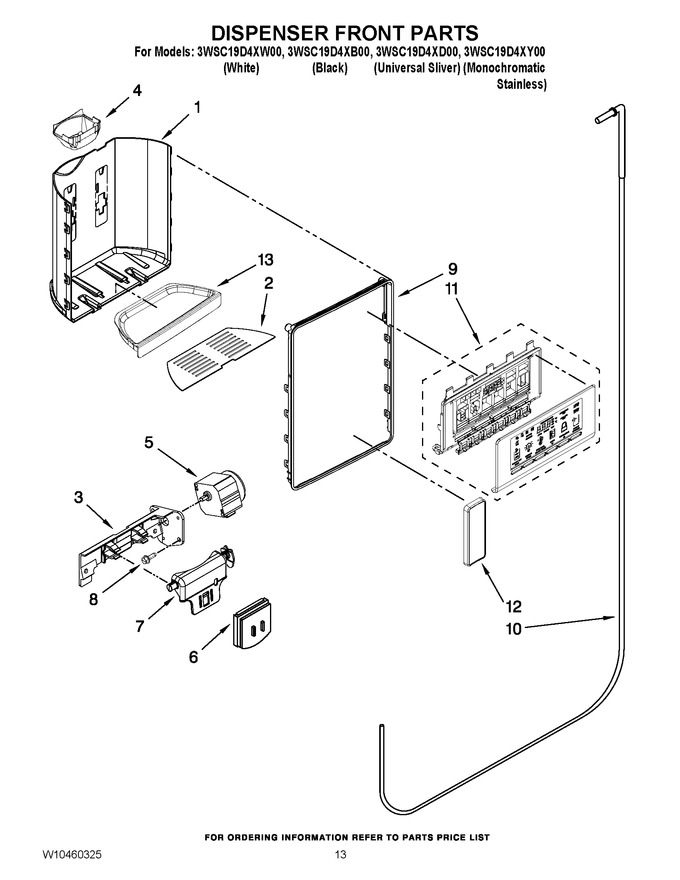

08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10330965		Grate, Drip Tray (white)		Appelez-nous	-
2	W10276259		Grate, Drip Tray (black)		Appelez-nous	-
3	W10174827		Bracket, Ice Door				$ 76.42
4	W10499850		Chute, Door   (Replaces: W10174808)				$ 104.67
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
6	W10781989		Ice Door Assembly (includes Items 3, 5, 7, & 8)   (Replaces: W10328295)				$ 166.39
7	W10499850		Support, Ice Door   (Replaces: W10174809)				$ 104.67
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	WPW10276257		Trim Ring (black)   (Replaces: W10276257)				$ 147.06
9	W10330884		Trim Ring (white)		Appelez-nous	-
10	WPW10386778		Water Tube   (Replaces: W10277960)			Immediately	$ 132.74
11	W10276268		Electronic Control Assy		Appelez-nous	-
12	WPW10370592		Pad, Ice & Water (black)   (Replaces: W10370592)				$ 322.90
12	WPW10370593		Pad, Ice & Water (white)   (Replaces: W10370593)				$ 311.61
13	W10276253		Tray, Housing (black)		Appelez-nous	-
13	W10276252		Tray, Housing (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
