01 - Cooktop Parts

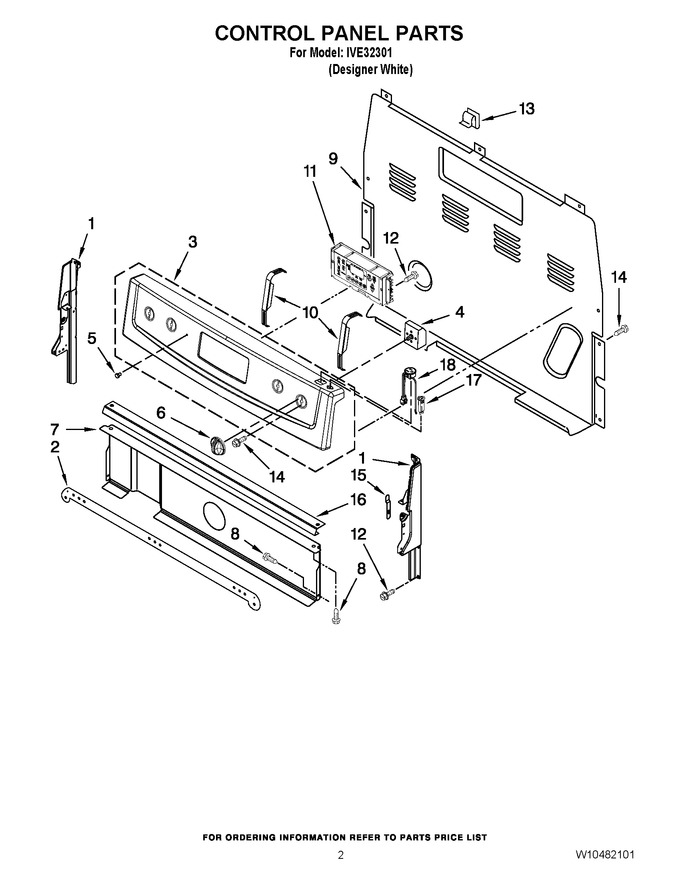

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 2 | 9780585 | Guard, Wire |
|
$ 35.21 | |||||
| 3 | W10202191 | Panel, Console (white) |
|
$ 37.94 | |||||
| 4 | WP3149400 | Switch, Infinite (right Rear) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 4 | WP3148952 | Switch, Infinite (right Front) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 5 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 6 | WP9761962 | Knob, Infinite (4) (white) (Replaces: 9761962) |
|
Immediately | $ 20.65 | ||||
| 7 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 8 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 9 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 10 | W11230932 | Brkt-mntg, Eoc (Replaces: W10138683) |
|
Immediately | $ 84.81 | ||||
| 11 | WPW10476684 | Control, Range (white) (Replaces: W10271746) |
|
Immediately | $ 223.28 | ||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 13 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 | |||||
| 14 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 15 | 3196200 | Clip, Spring (2) |
|
$ 10.45 | |||||
| 16 | W10525121 | Brkt-mntg,console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 17 | WP9757601 | Circuit Breaker (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 18 | W10849725 | Receptacle (Replaces: W10203476) |
|
Immediately | $ 80.79 |
