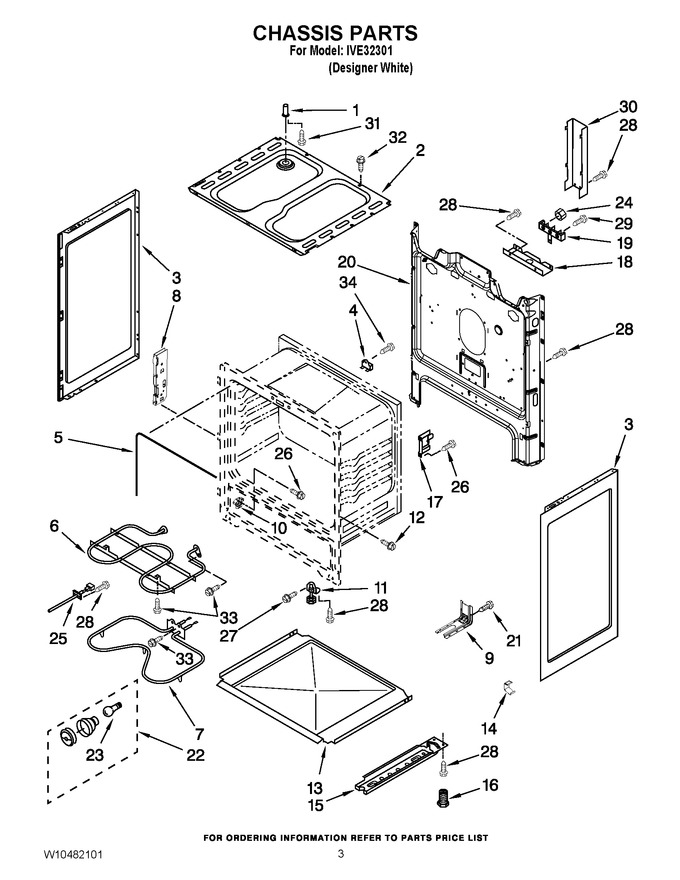

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11222268 | Vent Tube (Replaces: 3169143) |
|
$ 104.30 | |||||
| 2 | W11699791 | Box, Burner (Replaces: W10209613) |
|
$ 262.30 | |||||
| 3 | WPW10575396 | Panel, Side (2) (white-textured) (Replaces: W10322769) |
|
$ 148.71 | |||||
| 4 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 5 | W11542153 | Seal, Oven Door (Replaces: W10129032) |
|
Immediately | $ 50.20 | ||||
| 6 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 154.62 | ||||
| 7 | WPW10308477 | Element, Bake (Replaces: W10308477) |
|
Immediately | $ 71.86 | ||||
| 8 | W10647259 | Brkt, Mounting (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 9 | W11839019 | Bracket, Anti Tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 10 | W10763667 | Glide, Drawer Frnt (Replaces: W10317898) |
|
Immediately | $ 107.68 | ||||
| 11 | WPW10341186 | Foot, Front (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 13 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 104.36 | |||||
| 14 | W10137382 | Clip, Panel (4) |
|
Immediately | $ 48.42 | ||||
| 15 | W11818353 | Rail, Base (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 15 | W11818353 | Rail, Base (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Rear (2) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 17 | W10404688 | Support, Oven (Replaces: W10355173) |
|
$ 17.69 | |||||
| 18 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 19 | WP8203546 | Block, Terminal (Replaces: W10246624) |
|
Immediately | $ 30.13 | ||||
| 20 | W10289149 | Back, Main |
|
$ 72.39 | |||||
| 21 | WP7101P485-60 | Screw, Anti Tip (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 22 | W11594027 | Light Socket Assy (Replaces: W10454648) |
|
Immediately | $ 87.01 | ||||
| 23 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 24 | WP7103P027-60 | Nut (3) (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 25 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 26 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 27 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 28 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 29 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 30 | WPW10326122 | Cover, Box (Replaces: W10326122) |
|
$ 139.60 | |||||
| 31 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 8.06 | |||||
| 32 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 33 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 34 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: 8273263) |
|
Immediately | $ 55.47 | ||||
| NI | W11311894 | Insulation, Back (Replaces: 8272611) |
|
$ 115.11 |
