| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10356101 |
|
Installation Instructions |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10389458 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10362946 |
|
Wiring Diagram |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10343071 |
|
Use & Care Guide |
|
Appelez-nous
|
- |
|
|
|
| 2 |
3390688 |
|
Spacer, Foam Pad |
|
|
|
$ 9.48 |
|
|
| 3 |
W10732070 |
|
Bracket, Control (includes Illus. 2) (Replaces: 8528583) |
|
|
|
$ 184.42 |
|
|
| 4 |
WPW10113804 |
 |
Timer, Washer (Replaces: W10113804) |
|
|
Immediately |
$ 433.73 |
|
|
| 5 |
W10339549 |
|
Panel, Control |
|
|
|
$ 326.68 |
|
|
| 6 |
WP8566018 |
 |
Dial, (washer) (Replaces: 8566018) |
|
|
|
$ 53.59 |
|
|
| 7 |
WP8566022 |
 |
Knob, Timer (washer) (Replaces: 8566022) |
|
|
|
$ 66.58 |
|
|
| 8 |
8565944 |
|
Knob, Control |
|
|
|
$ 25.10 |
|
|
| 9 |
WP8536939 |
 |
Clip, Spring (Replaces: 8536939) |
|
|
Immediately |
$ 8.20 |
|
|
| 10 |
WP8566073 |
 |
Knob, Push-to-start (Replaces: 8566073) |
|
|
|
$ 58.00 |
|
|
| 11 |
8566061 |
|
Knob, Timer (dryer) |
|
|
|
$ 26.93 |
|
|
| 12 |
W10915367 |
|
Screw, 10-32 X 5/16 (Replaces: 3400808) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
W10510877 |
 |
Switch, Pressure (Replaces: W10415756) |
|
|
Immediately |
$ 290.77 |
|
|
| 14 |
W11103599 |
 |
Switch, Temperature (Replaces: W10114118) |
|
|
Immediately |
$ 201.80 |
|
|
| 15 |
WP90767 |
 |
Screw, 8-18 X 3/8 (Replaces: 90767) |
|
|
Immediately |
$ 8.25 |
|
|
| 16 |
WP3404233 |
 |
Switch, Push-to-start (Replaces: 3404233) |
|
|
Immediately |
$ 115.10 |
|
|
| 17 |
8521965 |
|
Gasket, Console |
|
Appelez-nous
|
- |
|
|
|
| 18 |
WP694419 |
 |
Buzzer, Mini (Replaces: 694419) |
|
|
|
$ 134.05 |
|
|
| 19 |
WPW10113761 |
 |
Timer, Dryer (Replaces: W10113761) |
|
|
|
$ 377.84 |
|
|
| 20 |
2219077 |
|
Clip, Harness |
|
|
|
$ 64.24 |
|
|
| 21 |
3389453 |
|
Bracket, Hinge |
|
|
|
$ 91.07 |
|
|
| 22 |
3389456 |
|
End Cap (rh) |
|
|
|
$ 40.11 |
|
|
| 23 |
W10139463 |
|
Harness, Dryer |
|
Appelez-nous
|
- |
|
|
|
| 24 |
7111P002-60 |
|
Clamp, Harness (Replaces: 3390604) |
|
Appelez-nous
|
- |
|
|
|
| 25 |
W10134185 |
|
Clip, Harness (Replaces: 3390422) |
|
Appelez-nous
|
- |
|
|
|
| 26 |
W10121648 |
|
Jumper Wire (buzzer, Timer) |
|
Appelez-nous
|
- |
|
|
|
| 27 |
3389464 |
|
End Cap (lh) |
|
|
|
$ 26.75 |
|
|
| 28 |
W10210799 |
|
Clip, Harness |
|
Appelez-nous
|
- |
|
|
|
| 29 |
W10510877 |
|
Switch, Pressure (2-level) (Replaces: W10400880) |
|
|
Immediately |
$ 290.77 |
|
|
| 30 |
W10134186 |
|
Clip, Harness |
|
Appelez-nous
|
- |
|
|
|
| 31 |
W10368080 |
 |
Hose, Pressure Switch |
|
|
|
$ 35.69 |
|
|

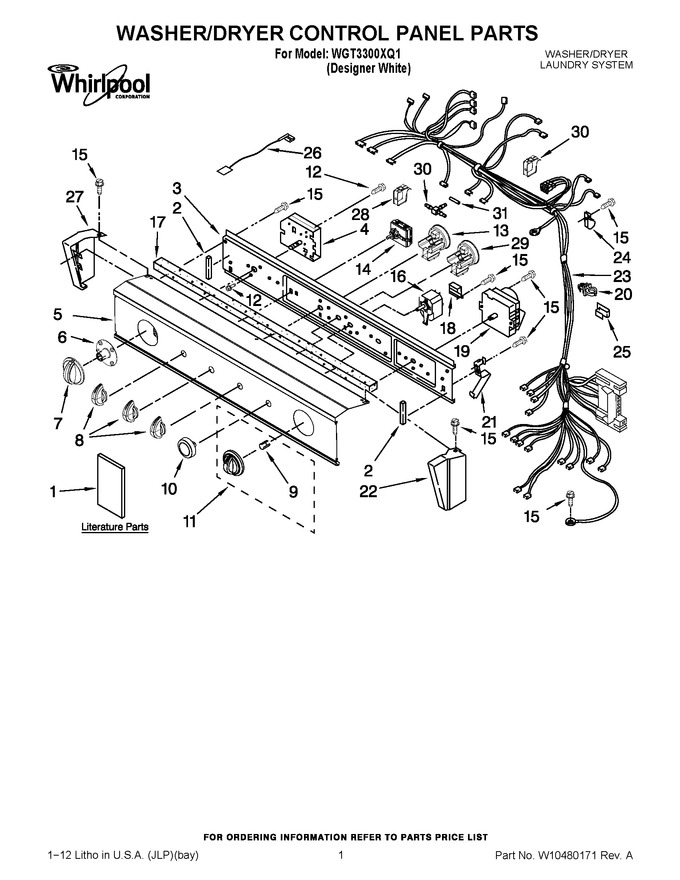

View Diagram in Separate Window
