| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP660658 |
 |
Clamp, Motor Mounting (Replaces: 660658) |
|
|
|
$ 8.22 |
|
|
| 2 |
279811 |
 |
Motor, Main Drive (60 Hz.) (Replaces: 8538266) |
|
|
Immediately |
$ 388.61 |
|
|
| 3 |
3398948 |
|
Wire, Jumper |
|
|
|
$ 64.66 |
|
|
| 4 |
279782 |
 |
Switch, Broken Belt (Replaces: 3394881) |
|
|
Immediately |
$ 58.41 |
|
|
| 5 |
W11107903 |
|
Bracket, Motor (Replaces: 3388858) |
|
|
|
$ 56.62 |
|
|
| 6 |
3389847 |
|
Panel, Rear |
|
Appelez-nous
|
- |
|
|
|
| 7 |
WP681414 |
 |
Screw, 10-16 X 1/2 (Replaces: 343641) |
|
|
Immediately |
$ 8.47 |
|
|
| 8 |
279814 |
|
Cover, Terminal Block (Replaces: 3387673) |
|
|
|
$ 105.54 |
|
|
| 9 |
WP90767 |
 |
Screw, Ground (8-18 X 3/8) (Replaces: 8533971) |
|
|
Immediately |
$ 8.25 |
|
|
| 10 |
3389264 |
|
Panel, Side (l.h.) |
|
|
|
$ 350.82 |
|
|
| 10 |
3389256 |
|
Panel, Side (r.h.) |
|
|
|
$ 345.87 |
|
|
| 11 |
WP3390631 |
 |
Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
|
|
$ 8.25 |
|
|
| 12 |
WP3389431 |
|
Bumper, Lid Stop (Replaces: 3389431) |
|
|
|
$ 11.93 |
|
|
| 13 |
697438 |
|
Clip |
|
Appelez-nous
|
- |
|
|
|
| 14 |
W10167612 |
|
Wire, Broken Belt Switch |
|
|
|
$ 13.42 |
|
|
| 15 |
3389231 |
|
Clip, Front Panel |
|
|
|
$ 13.28 |
|
|
| 16 |
WP98234 |
 |
Clip, Ground (Replaces: 98234) |
|
|
Immediately |
$ 11.96 |
|
|
| 17 |
W11100260 |
|
Bracket, Bulkhead (Replaces: 3391639) |
|
|
|
$ 20.48 |
|
|
| 18 |
WPW10512946 |
 |
Washer, Thrust (Replaces: 690997) |
|
|
Immediately |
$ 9.68 |
|
|
| 19 |
WPW10121334 |
 |
Tri-ring (Replaces: W10121334) |
|
|
Immediately |
$ 7.55 |
|
|
| 20 |
661570V |
 |
Belt, Drive (Replaces: 3387610) |
|
|
Immediately |
$ 32.81 |
|
|
| 21 |
279811 |
|
Pulley, Motor (60 Hz.) (Replaces: 3391087) |
|
|
Immediately |
$ 388.61 |
|
|
| 22 |
WPW10547294 |
 |
Bracket, Idler (Replaces: 3389332) |
|
|
Immediately |
$ 51.51 |
|
|
| 23 |
WP8066120 |
 |
Lever, Snap Switch (Replaces: 8066120) |
|
|
Immediately |
$ 34.77 |
|
|
| 24 |
W10367083 |
|
Base, Dryer |
|
Appelez-nous
|
- |
|
|
|
| 25 |
WPW10446781 |
 |
Spring, Idler (Replaces: 3387374) |
|
|
Immediately |
$ 25.80 |
|
|
| 26 |
3389683 |
 |
Cove, Transition Panel (black) |
|
|
|
$ 129.96 |
|
|
| 27 |
3389272 |
 |
Panel, Transition |
|
|
|
$ 265.85 |
|
|
| 28 |
3389537 |
|
Top, Dryer |
|
Appelez-nous
|
- |
|
|
|
| 29 |
3390722 |
|
Shield, Console To Drum |
|
Appelez-nous
|
- |
|
|
|
| 30 |
3389682 |
|
Spacer |
|
|
|
$ 9.23 |
|
|
| 31 |
WP693304 |
 |
Screw & Washer (Replaces: 693304) |
|
|
|
$ 8.44 |
|
|
| 32 |
WPW10581952 |
|
Cord, Power (Replaces: W10239314) |
|
|
|
$ 123.69 |
|
|
| 33 |
WP692400 |
 |
Nut, Push In (Replaces: 692400) |
|
|
Immediately |
$ 8.02 |
|
|
| 34 |
3394743 |
|
Pin, Roll |
|
Appelez-nous
|
- |
|
|
|
| 35 |
WP98129 |
|
Screw, 6-20 X 1 (Replaces: 98129) |
|
|
|
$ 8.18 |
|
|
| 36 |
WP3389420 |
 |
Bolt, Shoulder (Replaces: 3389420) |
|
|
|
$ 8.62 |
|
|
| 37 |
WPW10547294 |
|
Pulley, Idler (Replaces: 3389331) |
|
|
Immediately |
$ 51.51 |
|
|

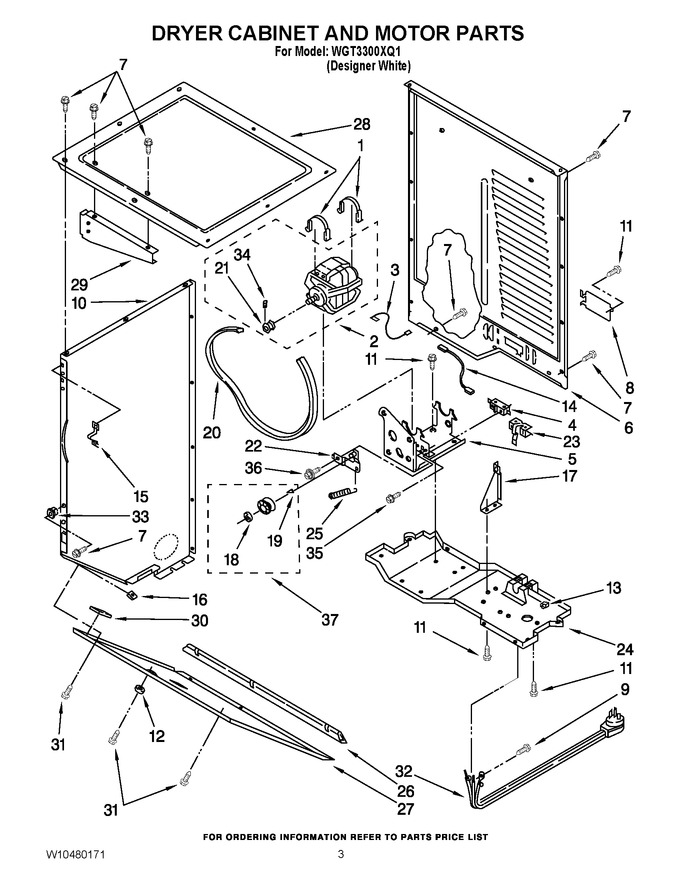

View Diagram in Separate Window
