SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

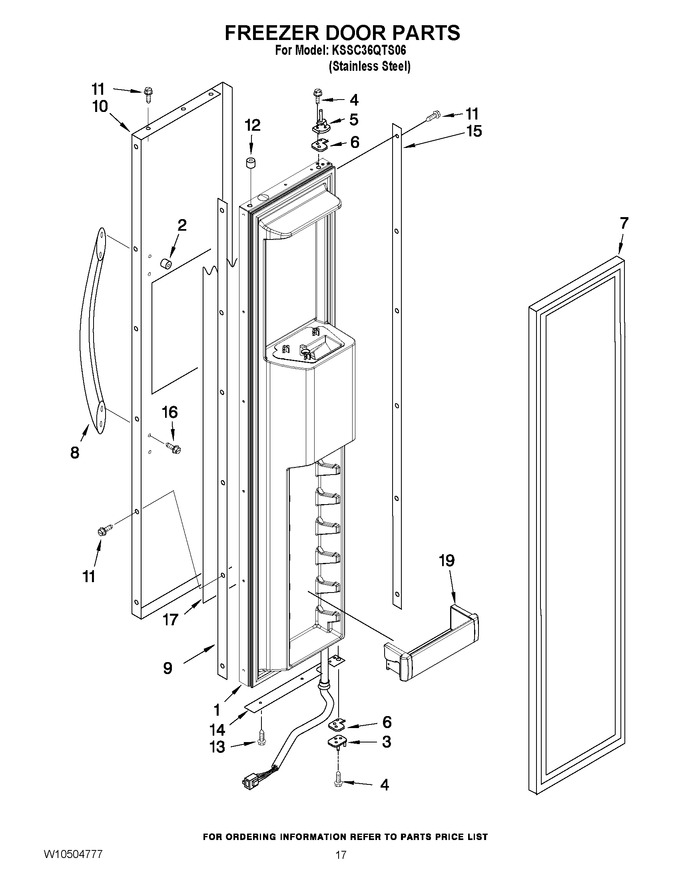

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10292431		Freezer Door (includes No.7)		Appelez-nous	-
2	2252354		Spacer		Appelez-nous	-
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 316.47
8	WP2316868		Handle, Door   (Replaces: 2316868)			Immediately	$ 281.43
9	2309060		Spacer, Door-skin (handle Side)		Appelez-nous	-
10	2307309		Skin, Door		Appelez-nous	-
11	WP8281250		Screw   (Replaces: 8281250)				$ 11.42
12	2005433		Spacer, Door Skin (top)				$ 23.33
13	W10759522		Screw   (Replaces: 488568)				$ 8.24
14	2257384		Spacer, Door-skin (bottom)		Appelez-nous	-
15	W10142296		Spacer, Door-skin (hinge Side)		Appelez-nous	-
16	WP308544		Screw, Handle   (Replaces: 308544)			Immediately	$ 8.30
17	2325197		Filler, Door (bottom)		Appelez-nous	-
17	2325196		Filler, Door (top)		Appelez-nous	-
19	W10323601		Bin, Door				$ 92.19

    View Diagram in Separate Window       Print Part List
