SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts

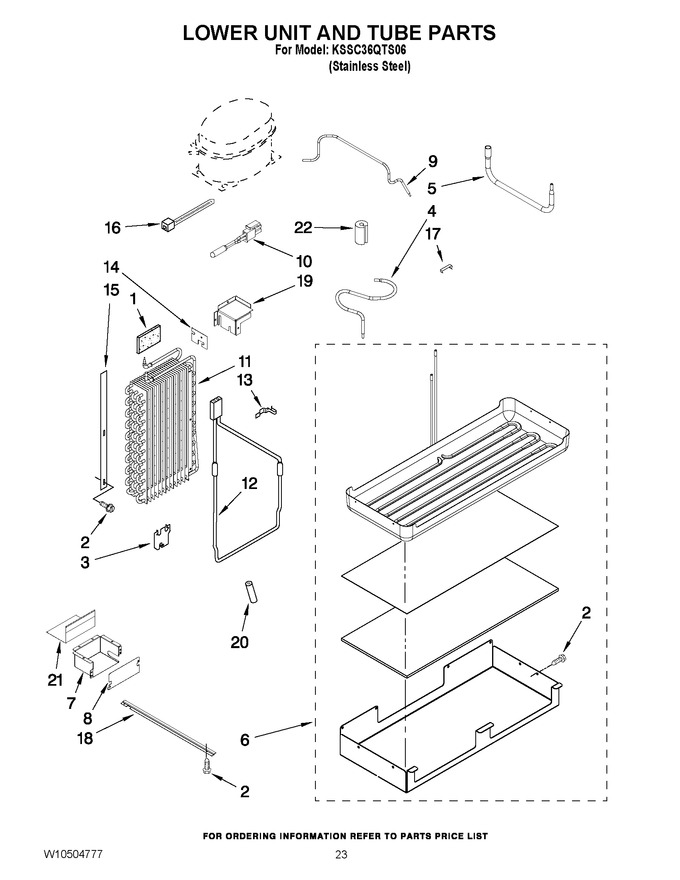

14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Insulation, Sound   (Replaces: 2169104)			Immediately	$ 14.77
2	W11624204		Screw   (Replaces: 486194)				$ 14.72
3	W10157752		Bracket		Appelez-nous	-
4	W10431124		Suction Tube Oil Trap				$ 32.73
5	W10388653		Tube, Connect (drier/restrictor)			Immediately	$ 40.48
6	W11623101		Drain Pan Assy   (Replaces: W10281063)			Immediately	$ 394.02
7	WPW10309012		Cover, Wiring   (Replaces: W10309012)				$ 81.52
8	W11756952		Cover, Box   (Replaces: W10321048)		Appelez-nous	-
9	W10412487		Tube, Discharge		Appelez-nous	-
10	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
11	WPW10427991		Evaporator   (Replaces: W10427991)				$ 239.94
12	W10140160		Heater, Defrost		Appelez-nous	-
13	1113048		Clamp, Heater		Appelez-nous	-
14	W10139908		Seal, Return Air				$ 13.06
15	W10432308		Gasket, Evaporator		Appelez-nous	-
16	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 8.30
17	W10169509		Clip, Heat Exchanger		Appelez-nous	-
18	2320554		Support, Drain Pan		Appelez-nous	-
19	W10160981		Bracket Assembly,air Return		Appelez-nous	-
20	2215648		Dampner				$ 13.21
21	W10321050		Shield, Wiring Cover		Appelez-nous	-
22	W11715935		Grommet   (Replaces: W10413009)				$ 13.58
