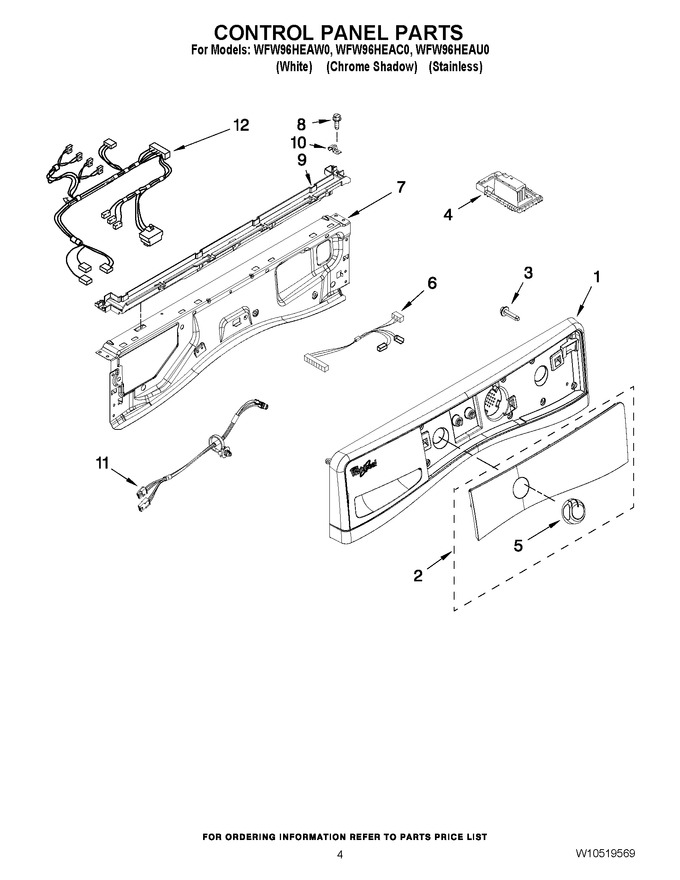

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10463516 | Console Asssembly (chrome Shadow) (Replaces: W10463516) |
|
$ 401.88 | |||||
| 1 | W10858319 | Console Asssembly (silver) (Replaces: W10503134) |
|
$ 348.14 | |||||
| 1 | W10446408 | Console Asssembly (white) |
|
$ 203.22 | |||||
| 2 | WPW10446434 | Iml Assembly (includes Item 3) (silver) (Replaces: W10503135) |
|
$ 551.91 | |||||
| 2 | W10446414 | Iml Assembly (includes Item 3) (white) |
|
- | |||||
| 2 | W10446416 | Iml Assembly (includes Item 3) (chrome Shadow) |
|
- | |||||
| 3 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 4 | W10491366 | Control Unit, Central |
|
- | |||||
| 5 | W10391535 | Knob Assembly |
|
$ 25.18 | |||||
| 6 | W10486221 | Harness, Ui Jumper |
|
- | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (includes Item 10) (Replaces: W10317570) |
|
$ 90.94 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 9.16 | |||||
| 11 | W10485684 | Harness, Led Ui |
|
$ 25.92 | |||||
| 12 | W10481516 | Harness, Wiring (upper Main) |
|
$ 240.70 |
