01 - Top And Cabinet Parts
02 - Door Parts
03 - Control Panel Parts
04 - Dispenser Parts

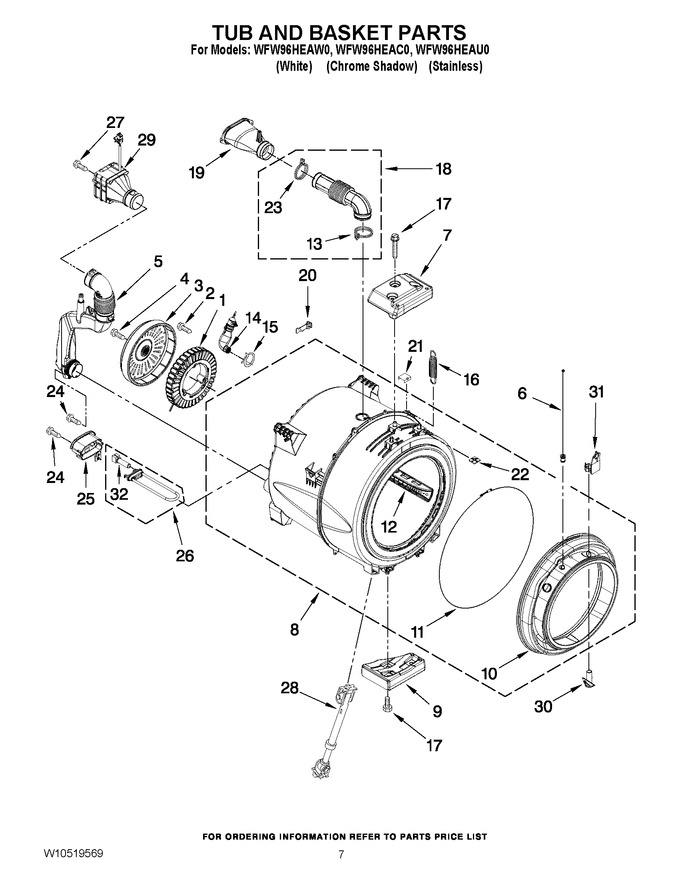

05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10365754 | Stator, Motor (Replaces: W10213978) |
|
Immediately | $ 534.10 | ||||
| 2 | WPW10253476 | Screw, Stator Mounting (Replaces: W10253476) |
|
$ 9.22 | |||||
| 3 | W10365755 | Rotor, Motor (includes Item 4) (Replaces: W10213980) |
|
$ 380.15 | |||||
| 4 | W11253212 | Screw, Rotor Mounting (Replaces: W10253477) |
|
Immediately | $ 15.55 | ||||
| 5 | W10261582 | Pipe, Ventilation Assembly |
|
$ 51.11 | |||||
| 6 | W10272847 | Light, Led Assembly |
|
$ 53.99 | |||||
| 7 | W10253014 | Counterweight, Top |
|
$ 196.27 | |||||
| 8 | WPW10450389 | Tub Assembly, Drum (Replaces: W10355151) |
|
$ 1,841.73 | |||||
| 9 | W10237535 | Counterweight, Bottom |
|
$ 198.24 | |||||
| 10 | WPW10237493 | Bellow (Replaces: W10237493) |
|
Immediately | $ 296.30 | ||||
| 11 | W11218344 | Retainer, Bellow To Tub (Replaces: W10237502) |
|
Immediately | $ 34.63 | ||||
| 12 | W10697830 | Baffle, Tub (Replaces: W10292810) |
|
$ 129.00 | |||||
| 13 | W10353599 | Clamp, Hose |
|
$ 35.24 | |||||
| 14 | WPW10260500 | Airtrap Assembly (Replaces: W10260500) |
|
$ 40.20 | |||||
| 15 | 371499 | Clamp, Hose |
|
$ 12.95 | |||||
| 16 | W11266650 | Spring, Suspension (set Of 2) (Replaces: W10249487) |
|
Immediately | $ 18.90 | ||||
| 17 | W10261496 | Screw, Counterweight |
|
$ 13.89 | |||||
| 18 | WPW10568614 | Vent-hose Coupling Assembly (Replaces: W10352811) |
|
Immediately | $ 116.60 | ||||
| 19 | WPW10352818 | Vent Tube & Cover (Replaces: W10352818) |
|
$ 83.34 | |||||
| 20 | W10316388 | Clip, Harness Diverter |
|
$ 11.33 | |||||
| 21 | WP8540092 | Clamp, Tub (Replaces: 8540092) |
|
$ 7.97 | |||||
| 22 | WP8182512 | Nut, Push-in (Replaces: 8540072) |
|
Immediately | $ 7.30 | ||||
| 23 | W10273034 | Clamp, Hose |
|
$ 11.22 | |||||
| 24 | W10306501 | Screw |
|
- | |||||
| 25 | W10318155 | Shield, Heater |
|
- | |||||
| 26 | WPW10426377 | Heater (Replaces: W10426377) |
|
$ 319.00 | |||||
| 27 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 28 | W11415987 | Shock Absorber (Replaces: W10261492) |
|
Immediately | $ 158.53 | ||||
| 29 | WPW10261587 | Fan, Ventilation Assembly (Replaces: W10261587) |
|
$ 314.95 | |||||
| 30 | W10239948 | Nozzle, Spray Assembly |
|
$ 90.71 | |||||
| 31 | W10239928 | Bracket, Nozzle |
|
$ 18.23 | |||||
| 32 | WPW10467289 | Sensor, Temp (Replaces: W10467289) |
|
Immediately | $ 47.80 |
