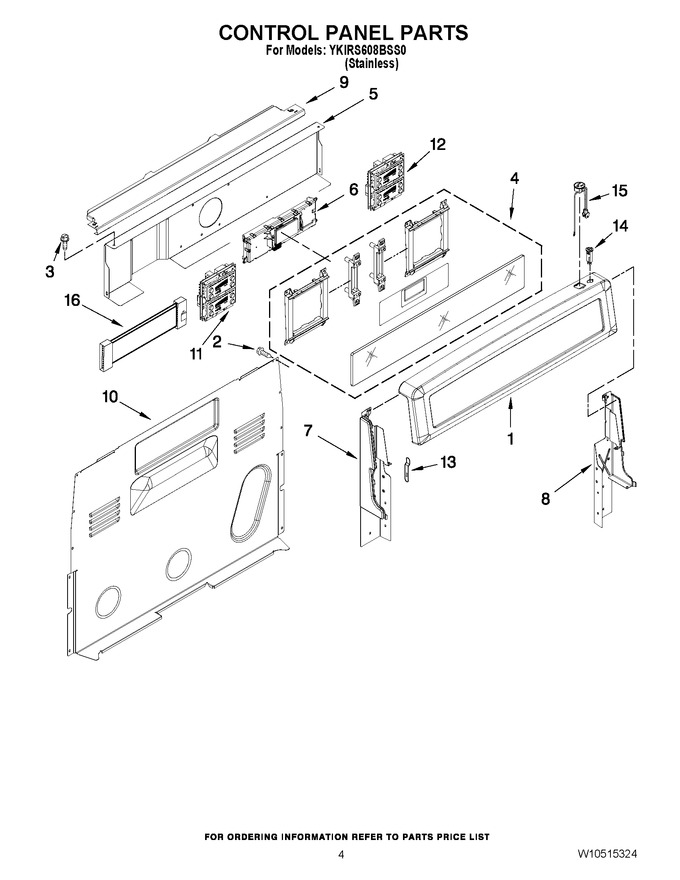

01 - Cooktop Parts
02 - Interior Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10347963 | Panel, Backguard (stainless Steel) |
|
- | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 3 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 4 | WPW10726780 | Active Overlay (Replaces: W10324413) |
|
$ 853.53 | |||||
| 5 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 6 | WPW10686474 | Control, Mrc2 (Replaces: W10340698) |
|
$ 474.80 | |||||
| 7 | W11404310 | End Cap, Lh (black) (Replaces: W10409002) |
|
$ 77.00 | |||||
| 8 | W10409003 | End Cap, Rh (black) |
|
$ 84.09 | |||||
| 9 | W10525121 | Bracket, Console Mounting (Replaces: W10182322) |
|
$ 98.85 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | WPW10341840 | Control, Ego Left (Replaces: W10341840) |
|
$ 576.89 | |||||
| 12 | WPW10553763 | Control, Ego Right (Replaces: W10341839) |
|
$ 879.73 | |||||
| 13 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 14 | WP9757602 | Breaker, Circuit (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 15 | W10861164 | Receptacle (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 16 | WPW10318787 | Connector, Flex (Replaces: W10318787) |
|
$ 119.94 |
